Brand: Weidmuller
Weidmuller 1143050000 Electrical Terminal
Part Number # 1143050000
SKU # 2208296
Brand: Weidmuller
1143050000
Weidmuller 1143050000 Electrical Terminal
Part Number # 1143050000
SKU # 2208296
$150.00 / 50Each
Typical price:$166.55 / Each
Weidmuller 1143050000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1143050000 |
| SKU #: | 2208296 |
| Dimensions: | 90 mm H x 5.08 mm W x 44.5 mm D |
| Connection type: | Plug-In/Screw |
| UNSPSC: | 39121410 |
| UPC: | 04032248926022 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$150.00 / 50Each
Typical price:$166.55 / Each
Quantity:
Weidmuller 1143050000 Electrical Terminal
Brand: Weidmuller
Part Number: 1143050000
Additional Description: WEID-1143050000 WMF 2.5 BLZ FEED-THROUGH TERMINAL BLOCK, SCREW CONNECTION, 2.5 MM, 250 V, 24 A, NUMBER OF CONNECTIONS: 3

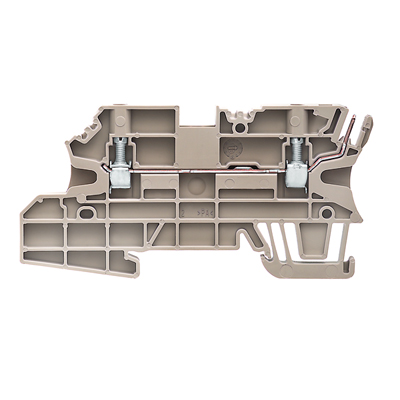

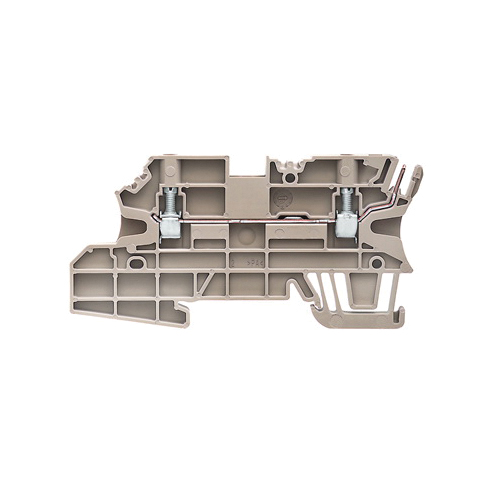

Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
1143050000 Item Features
- Weidmuller new WMF (Weidmuller multi-functional) line of terminal blocks provide a multi-functional solution for routing and distributing signals
- Space saving terminal combines all the necessary functionality into a single solution
- It features an integrated shield connection and can be used with feed-through, fuse and disconnect functionality
- The three cross connection channels and wide variety of labeling options offer additional flexibility
1143050000 Standards
RoHS Compliant|EAC Certified|UL File No. E60693|cULus Recognized|CE Certified|CSA Certified|IEC 60947-7-1|IEC 61984|UL 94 V-0 Flammability RatingSKU #2208296Part Number #1143050000UNSPSC39121410UPC04032248926022
Image provided may only be a representation of final product and may include optional equipment
