Weidmuller 1147450000 Telecommunication Connector
Part Number # 1147450000
SKU # 2264376
1147450000
Weidmuller 1147450000 Telecommunication Connector
Part Number # 1147450000
SKU # 2264376
$98.00 / 50Each
Typical price:$112.75 / Each
Weidmuller 1147450000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1147450000 |
| SKU #: | 2264376 |
| Dimensions: | 11.7 mm H x 43.84 mm W x 12 mm D |
| UNSPSC: | 31163101 |
| UPC: | 04050118051216 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$98.00 / 50Each
Typical price:$112.75 / Each
Quantity:

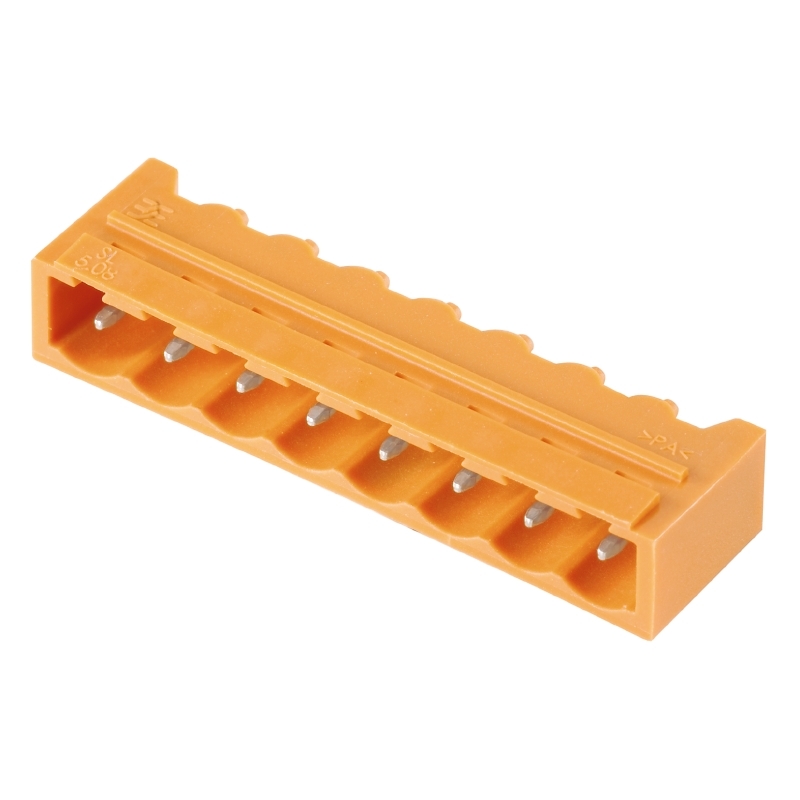

- Weidmuller OMNIMATE Signal PCB Plug-In Connector, Board Connection Closed Side High Current, Series: BL/SL 5.08 Series, 8 Positions, 1 Row, 5.08 mm Pitch/Row Spacing, PCB Mounting, 300/400 V, Male Header Connector, THT Solder Termination, CuMg Contact, PA GF Housing Material, -50 to 100 deg C, Orange, 11.7 mm H x 43.84 mm W x 12 mm D Dimensions
1147450000 Item Features
- Pin headers made from glass fiber reinforced plastic with 90 deg wire outlet, optimized for wave soldering
- This also protects the solder points from mechanical strain
- All pin headers can be manually coded or ordered pre-coded
- 400 V IEC, 300 V UL
1147450000 Standards
RoHS Compliant|IEC 60664-1, 61984|CSA Certified|UL 1059|cULus No. E60693 Recognized|EAC Certified|UL 94 V-0 Flammability Rating|KEMA KEUR CertifiedSKU #2264376Part Number #1147450000UNSPSC31163101UPC04050118051216
Image provided may only be a representation of final product and may include optional equipment
