Weidmuller 1147510000 Quick Disconnects
Part Number # 1147510000
SKU # 2432075
$96.00 / 50Each
Typical price:$112.75 / Each
Weidmuller 1147510000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1147510000 |
| SKU #: | 2432075 |
| Amperage Rating: | 24/18.5 A |
| Dimensions: | 1.4 in L |
| Finish: | TiN Coated |
| Number of Positions: | 8 |
| Series: | Omnimate SL 5.08 |
| Temperature Rating (Degrees F): | -50 to 100 deg C |
| Terminal Type: | THT Solder |
| Type: | Shrouded |
| Wiring Angle: | 180 deg |
| Country of origin: | DE |
| Material: | Copper/Polyamide |
| Mounting type: | Through Hole |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163101 |
| UPC: | 04032248934645 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$96.00 / 50Each
Typical price:$112.75 / Each
Quantity:

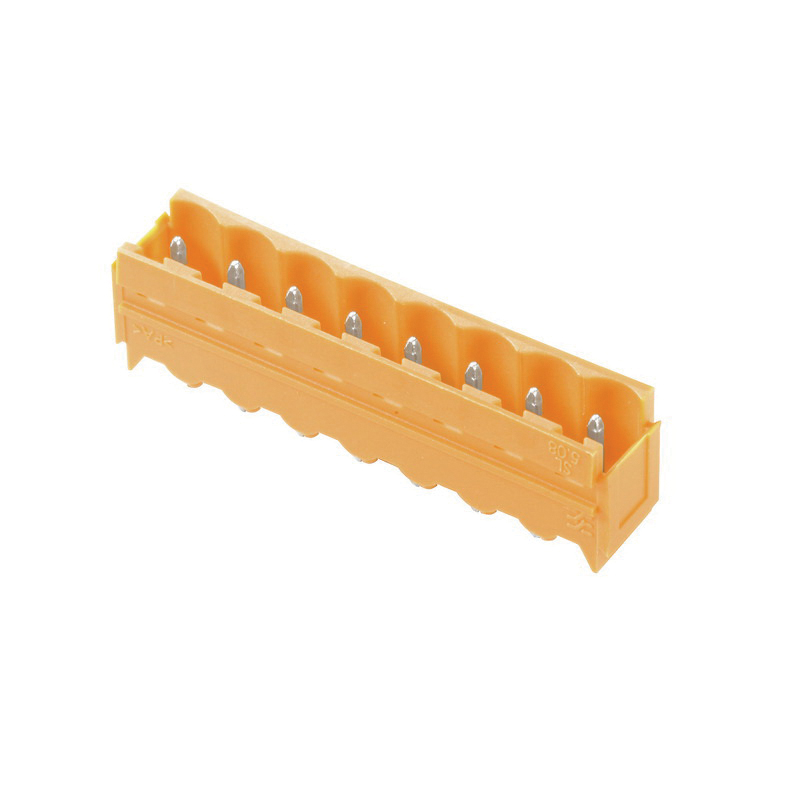

- Weidmuller Pluggable Terminal Block Header, Shrouded, Series: Omnimate SL 5.08, 300/400 V AC, 24/18.5 A, 8 Positions, 5.08 mm Pitch/Row Spacing, 180 deg Wiring Angle, THT Solder Terminal, Through Hole Mounting, -50 to 100 deg C, Copper/Polyamide, Orange, Tin Coated, 1.4 in L Dimensions
1147510000 Item Features
- Pin headers in glass-fiber-reinforced plastic with straight wire outlet, optimised for wave soldering
- The flange variant (F) can be screwed onto the respective counter piece or the circuit board
- There is no need for an extra screw to connect the circuit board when the solder flange (LF) version is used
- This also protects the solder points from mechanical strain
- All pin headers can be manually coded or ordered pre-coded
- Male headers made from glass fiber-reinforced plastic with straight wire outlet vertical orientation, optimised for wave soldering
- PCB plug-in connector
- Male header with dovetail guide(version B) for fixing blocks
- 1.2 mm Dia x 3.2 mm L octagonal solder pin
- 1.3 mm Dia solder eyelet hole
- Single row, high current header
- 72 hr sample service
- Engineering data
- Copper(Cu-Leg) contact/Polyamide(PA GF) insulating
- https://youtu.be/Ifq_mdNjF4g
1147510000 Standards
RoHS 2002/95/EC|IEC 60664-1|IEC 61984|CSA Certified|UL Listed|CURuS E60693|V-0 UL 94 FlammabilitySKU #2432075Part Number #1147510000UNSPSC31163101UPC04032248934645
Image provided may only be a representation of final product and may include optional equipment
