1162950000
Weidmuller 1162950000 Electrical Terminal
Part Number # 1162950000
SKU # 2273866
$758.50 / 50Each
Typical price:$842.35 / Each
Weidmuller 1162950000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1162950000 |
| SKU #: | 2273866 |
| Dimensions: | 3.465 in H x 0.2 in W x 2.913 in D |
| UNSPSC: | 39121410 |
| UPC: | 04032248992096 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$758.50 / 50Each
Typical price:$842.35 / Each
Quantity:
- Weidmuller Fuse Terminal Block, Series: W Series, 150 V AC, 6.3 A, 26 to 12 AWG Wire, 10 mm Wire Strip Length, 0.5 to 0.6 N-m Torque, Snap-Fit Mounting, Screw Connection, -50 to 120 deg C, Wemid, Black, 3.465 in H x 0.2 in W x 2.913 in D Dimensions
1162950000 Item Features
- Fuse isolator, for plug-in cross-connector, one end without connector
- TS 35 mounting rail
- Right open sides
- 2.5 sq-mm, screw connection
- 0.6 x 3.5 mm blade
- On side connection direction
- 0.5 to 4 sq-mm minimum/maximum clamping range, rated connection
- 0.5 to 2.5 sq-mm minimum/maximum rated wire connection cross-section, finely stranded with wire to end ferrules DIN 46228/1
- 2 number of connections
- A3 gauge to IEC 60947-1
- 17 A at 600 VAC
- UL 94 flammability rating V-0
- 1.33 mOhm volume-resistance according to IEC 60947-7-x
- 8 kV rated impulse withstand voltage
- 3 pollution severity
- WMF 2.5 FU 60-150V SW type
1162950000 Standards
CSA Certified|CE Certified|cURUS Listed|EAC|RoHS compliantSKU #2273866Part Number #1162950000UNSPSC39121410UPC04032248992096

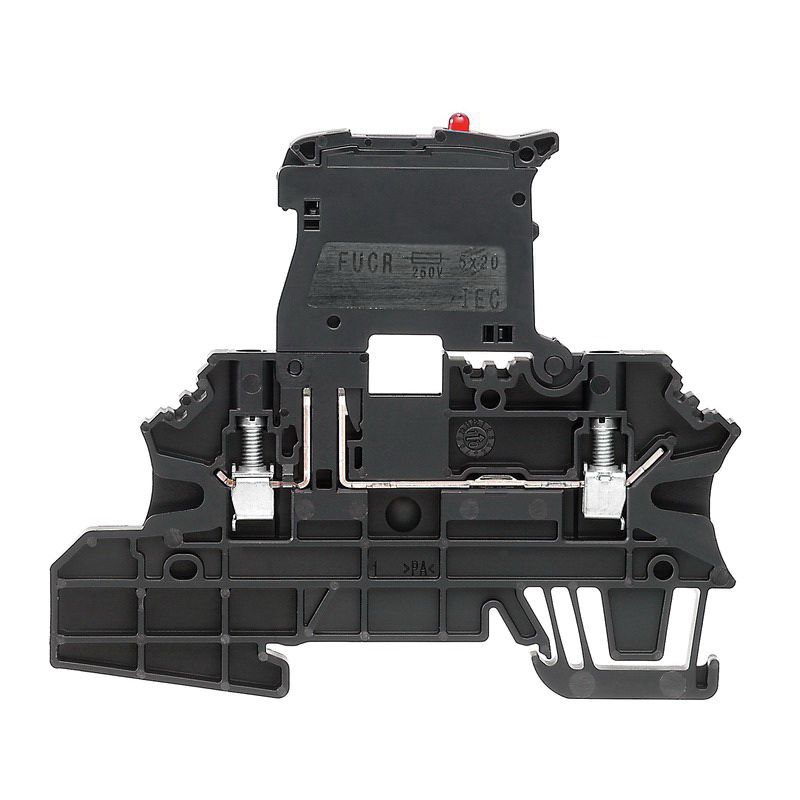

Image provided may only be a representation of final product and may include optional equipment
