1162980000

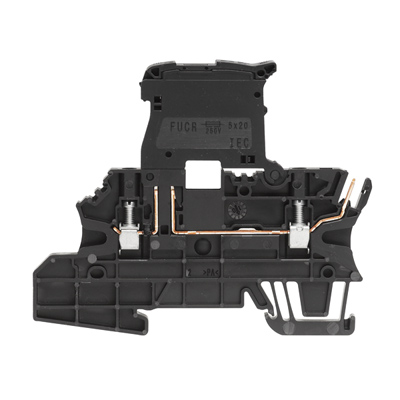

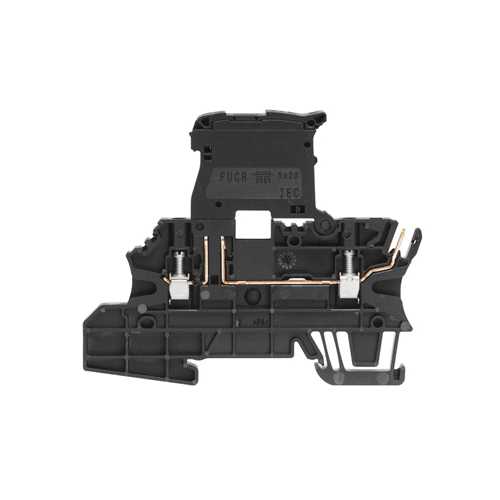

Weidmuller 1162980000 Electrical Terminal
Part Number # 1162980000
SKU # 2339410
$630.50 / 50Each
Typical price:$700.25 / Each
Weidmuller 1162980000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1162980000 |
| SKU #: | 2339410 |
| Amperage Rating: | 6.3 A |
| Dimensions: | 90 mm H x 5.08 mm W x 74 mm D |
| Series: | W Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Terminal Size: | M3 |
| Torque Rating: | 0.5 to 0.6 N-m |
| Type: | Multi-Functional |
| Wire Size: | 2.5 sq-mm |
| Connection type: | Screw |
| Country of origin: | RO |
| Material: | Wemid |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04032248992072 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$630.50 / 50Each
Typical price:$700.25 / Each
Quantity:
- Klippon Fuse Terminal Block, Multi-Functional, Series: W Series, 250 V, 6.3 A, 2.5 sq-mm Wire, 10 mm Wire Strip Length, M3 Terminal, 0.5 to 0.6 N-m Torque, Snap-Fit Mounting, Screw Connection, -50 to 120 deg C, Wemid, Black, 90 mm H x 5.08 mm W x 74 mm D Dimensions
1162980000 Item Features
- Weidmuller new WMF (Weidmuller multi-functional) line of terminal blocks provide a multi-functional solution for routing and distributing signals
- This space saving terminal combines all the necessary functionality into a single solution
- It features an integrated shield connection and can be used with feed-through, fuse and disconnect functionality
- The three cross connection channels and wide variety of labeling options offer additional flexibility
1162980000 Standards
RoHS Compliant|UL File No. E60693|UL 94 V-0 Flammability Rating|UL/cULus File No. E60693|CSA File No. 200039-1057876|CE Certified|EAC CertifiedSKU #2339410Part Number #1162980000UNSPSC39121410UPC04032248992072
Image provided may only be a representation of final product and may include optional equipment
