Weidmuller 1165940005 Network Cable Management Panel Assembly
Part Number # 1165940005
SKU # 2404919
1165940005
Weidmuller 1165940005 Network Cable Management Panel Assembly
Part Number # 1165940005
SKU # 2404919
$6.52 / Each
Typical price:$6.88 / Each
Weidmuller 1165940005 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1165940005 |
| SKU #: | 2404919 |
| Length: | 0.02 in |
| Material: | Polyethylene |
| UNSPSC: | 43223305 |
| UPC: | 04032248956081 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6.52 / Each
Typical price:$6.88 / Each
Quantity:

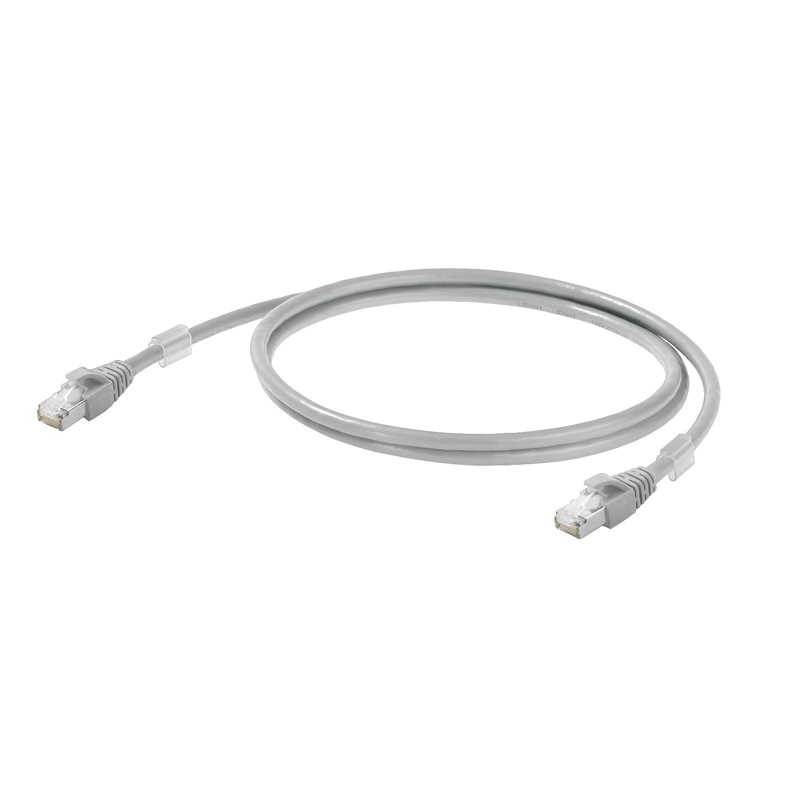

- Weidmuller Patch Cable, 0.02 in Length, Polyethylene, Gray
1165940005 Item Features
- -20 to 60 deg C operating temperature
- 1 A current carrying capacity at 50 deg C
- 48 VAC/DC operating voltage
- 0.43 mm Dia copper
- 4 x 2 AWG, 27/7 to 4 x 2 x 0.1 sq-mm cross-section
- 1.04 mm insulation cross-section
- S/FTP shielding
- 60% overlap of shielding braid
- 5.5 to 5.9 mm Dia sheath
- 8-wires
- Cat.6A/Class EA (ISO/IEC 11801 2010) category
- 25 ns/100m deviation
- 100 +/- 15 Ohm at 1 to 100 MHz characteristic impedance
- 10 GBit/s speed
- 46 nF/km capacity at 1 kHz
- 25 to 50 mm bending radius
- Halogen-free, according to IEC 60754-2
- RJ45 IP20 protection degree, connector left and right
- IE-C6FP8LD0005M40M40-D type
1165940005 Standards
cULus Listed|RoHS CompliantSKU #2404919Part Number #1165940005UNSPSC43223305UPC04032248956081
Image provided may only be a representation of final product and may include optional equipment
