1170070000
Weidmuller 1170070000 Electrical Receptacle
Part Number # 1170070000
SKU # 2344802
$3.05 / Each
Typical price:$3.22 / Each
Weidmuller 1170070000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1170070000 |
| SKU #: | 2344802 |
| Number of Contacts: | 12 |
| Shell Size: | M23-12 |
| Specifications: | 200 V, 8 A, 1 mm Dia Contact, >1000 Plugging Cycles, Crimp Connection |
| Suitable For Use With: | Sensor and Actuator Plug-In Connector |

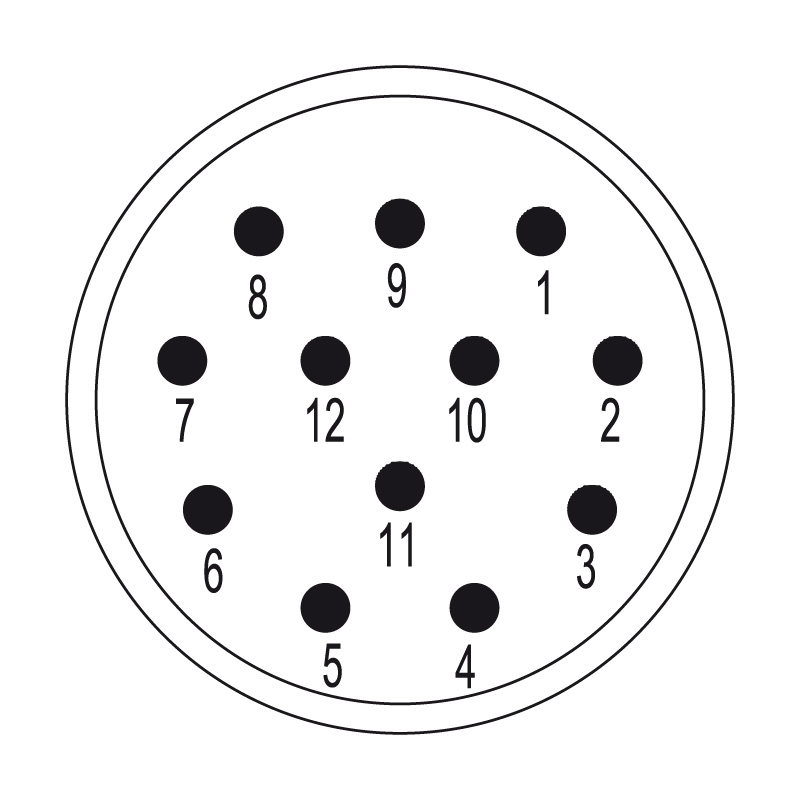

| Type: | 12-Pole Circular |
| Insulation resistance: | >10000 MOhm |
| Material: | PA 6 Thermoplastic Polyamide/PBT |
| Insert Type: | Male Pin |
| UNSPSC: | 32151902 |
| UPC: | 04032248962044 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3.05 / Each
Typical price:$3.22 / Each
Quantity:
- Weidmuller Contact Insert, 12-Pole Circular, Series: SAI, Male Pin Insert, M23-12 Shell, 12 Contacts, >10000 MOhm Insulation Resistance, For Use With: Sensor and Actuator Plug-In Connector, Specifications: 200 V, 8 A, 1 mm Dia Contact, >1000 Plugging Cycles, Crimp Connection, -40 to 125 deg C, PA 6 Thermoplastic Polyamide/PBT
1170070000 Application
For signal transmission applications1170070000 Standards
RoHS Compliant|UL File No. E344862|EAC Certified|UL 94 V-0 Flammability Rating|UL RecognizedSKU #2344802Part Number #1170070000UNSPSC32151902UPC04032248962044
Image provided may only be a representation of final product and may include optional equipment
