1173820000
Weidmuller 1173820000 Terminal Blocks
Part Number # 1173820000
SKU # 2430704
$258.83 / 20Each
Typical price:$287.50 / Each
Weidmuller 1173820000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1173820000 |
| SKU #: | 2430704 |
| Amperage Rating: | 10 A |
| Dimensions: | 70 mm H x 9.2 mm W x 54.5 mm D |
| Series: | PRV |
| Temperature Rating (Degrees F): | -50 to 130 deg C |
| Wire Size: | 24 to 16 AWG |
| Connection type: | Push-In |
| Country of origin: | RO |
| Material: | Polycarbonate |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04032248966332 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$258.83 / 20Each
Typical price:$287.50 / Each
Quantity:

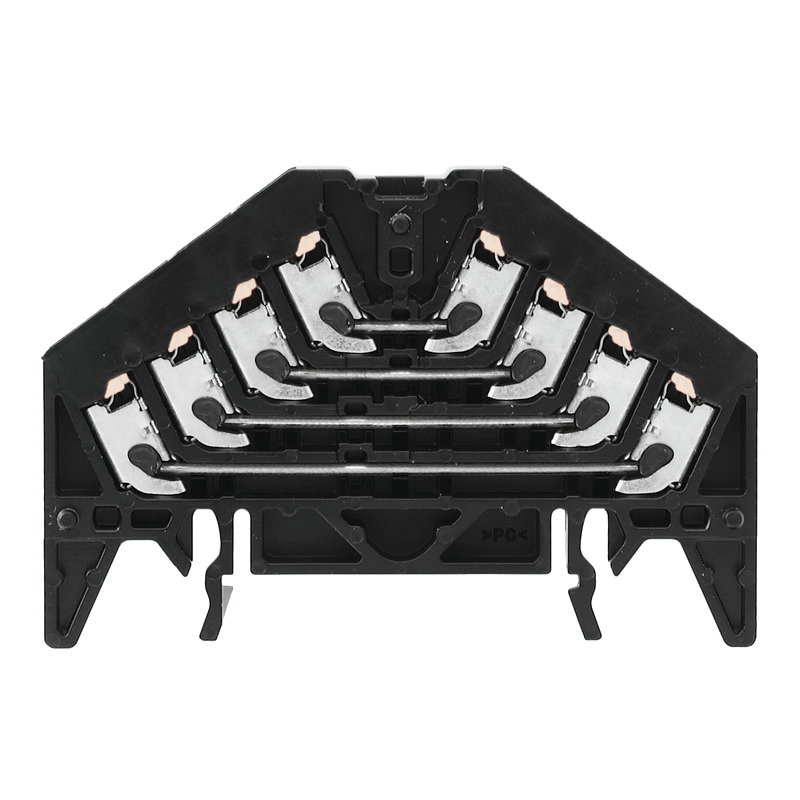

- Klippon Patch Distributor Terminal Block, Series: PRV, 250 V, 10 A, 24 to 16 AWG Wire, 10 mm Wire Strip Length, Snap-Fit Mounting, Push-In Connection, -50 to 130 deg C, Polycarbonate, Black, 70 mm H x 9.2 mm W x 54.5 mm D Dimensions
1173820000 Item Features
- Save space by connecting with these multi-tier terminals with PUSH IN connection technology
- More than 1700 signals per meter can be distributed with the 16-channel terminal block
- Red and white actuators make it easier to assign wires to their terminal points
- The PUSH IN connections make wiring quick and convenient
1173820000 Standards
RoHS Compliant|UL File No. E60693|UL 94 V-0 Flammability Rating|CSA File No. 200039-2406089|cULus File No. E60693|IEC 60947-7-1|CE Certified|EAC Certified|UL/cULus File No. E60693|CSA File No. 200039-2406089SKU #2430704Part Number #1173820000UNSPSC39121410UPC04032248966332
Image provided may only be a representation of final product and may include optional equipment
