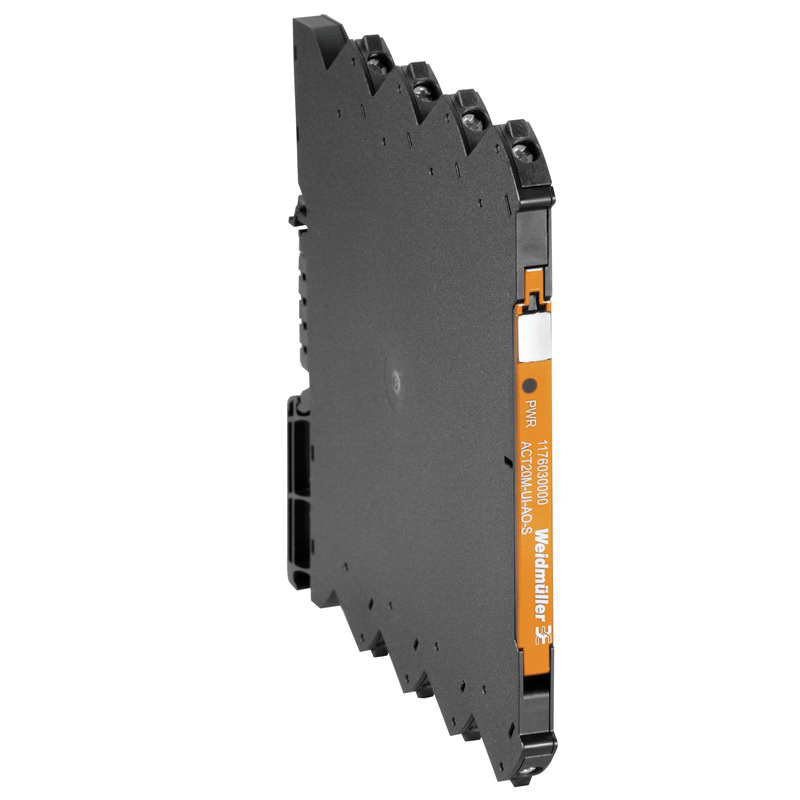

Weidmuller 1176020000 Isolation Amplifier
Part Number # 1176020000
SKU # 2286530
Weidmuller 1176020000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1176020000 |
| SKU #: | 2286530 |
| Dimensions: | 4.429 in H x 0.24 in W x 4.5 in D |
| Input Voltage: | 0 to 5/0 to 10 VDC |
| Response Time: | 7 ms |
| Temperature Rating (Degrees F): | -25 to 70 deg C |
| Connection type: | Thread |
| Country of origin: | DK |
| Input current: | 0 to 20/4 to 20 mA |
| Mounting type: | DIN Rail |
| Output current: | 0 to 20/4 to 20 mA |
| Output voltage: | 0 to 5/0 to 10 VDC |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121020 |
| UPC: | 04032248970087 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1176020000 Isolation Amplifier
Brand: Weidmuller
Part Number: 1176020000
Weidmuller Isolation Amplifier, 0 to 5/0 to 10 VDC Input, 0 to 5/0 to 10 VDC Output, 0 to 20/4 to 20 mA Input Current, 0 to 20/4 to 20 mA Output Current, 1.2 W Power, Thread Connection, DIN Rail Mounting, -25 to 70 deg C, 7 ms Response, <0.05 % Accuracy, 4.429 in H x 0.24 in W x 4.5 in D Dimensions
Additional Description: WEID-1176020000 ACT20M-AI-2AO-S SIGNAL CONVERTER/INSULATOR, CONFIGURABLE, WITH SENSOR SUPPLY, INPUT : I / U, OUTPUT : 2 X I/U
Catalog Description: Isolating amplifier for recording electrical and physical parameters. With electrical isolation, universally applicable.
1176020000 Includes
01176020000 Item Features
- 40 deg C humidity
- 17 VDC at 20 mA sensor supply
- 1.5 V voltage drop, current input
- 100 Hz cut-off frequency (-3 dB)
- 300 Ohm, per channel, at max 23 mA load impedance current
- 10 kOhm load impedance voltage
- 3-way galvanic isolation
- DIP switch configuration
- 0.84 W power consumption
- The configurable DC isolating amplifier ACT20M-AI-AO-S isolates and converts analogue standard signals
- An analogue input signal is linearly converted into an analogue output signal and galvanically isolated, 2 galvanically isolated outputs (4-way isolation)
- The input can also be operated as an active current loop
1176020000 Standards
cULus Listed|cUL Listed|CE Certified|IEC|RoHS CompliantSKU #2286530Part Number #1176020000UNSPSC39121020UPC04032248970087
