1176070000
Weidmuller 1176070000 Amplifier
Part Number # 1176070000
SKU # 2270533
$211.36 / Each
Weidmuller 1176070000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1176070000 |
| SKU #: | 2270533 |
| Dimensions: | 112.5 mm H x 6.1 mm W x 114.3 mm D |
| Response Time: | <=5 ms |
| Specifications: | 0.4 to 0.6 N-m Tightening Torque |
| UNSPSC: | 39121020 |
| UPC: | 04032248970148 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$211.36 / Each
Quantity:
- Weidmuller Signal Converter/Insulator, 1-Channel, 0 to 20/4 to 20 mA Input Current, 0 to 20/4 to 20 mA Output, 30 mW, Screw, TS35 Rail Mount, -25 to 70 deg C, <=5 ms Response, <0.1 % Accuracy, 0.4 to 0.6 N-m Tightening Torque, 112.5 mm H x 6.1 mm W x 114.3 mm D
1176070000 Application
For isolating standard analogue current signals1176070000 Item Features
- Safe and space saving (6 mm) isolation and conversion
- Quick installation of the power supply unit using the CH20M mounting rail bus
- Easy configuration via DIP switch or FDT/DTM software
- High interference resistance
- Input current loop powered
1176070000 Standards
RoHS Compliant|UL/cULus File No. E337701|IEC 61326-1/NE 21|ATEX File No. KEMA10ATEX0183X|IECEX File No. IECEXKEM10.0090X|EAC Certified|FM Approved|DNV-GL ApprovedSKU #2270533Part Number #1176070000UNSPSC39121020UPC04032248970148

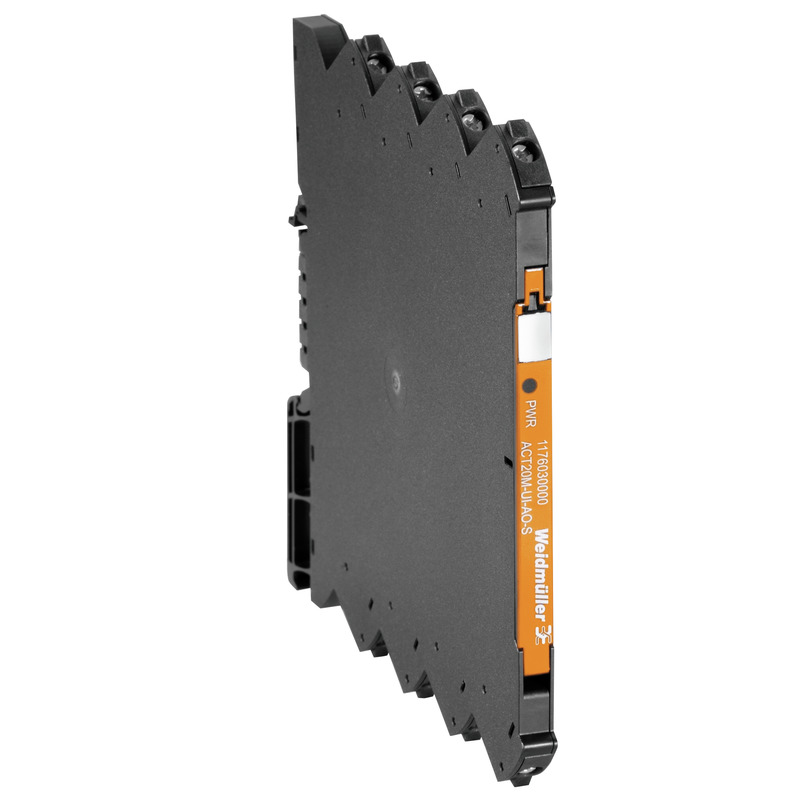

Image provided may only be a representation of final product and may include optional equipment
