Weidmuller 1186770000 Electrical Terminal
Part Number # 1186770000
SKU # 2261100
$645.00 / 50Each
Typical price:$716.30 / Each
Weidmuller 1186770000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1186770000 |
| SKU #: | 2261100 |
| Dimensions: | 3.346 in H x 0.39 in W x 2.717 in D |
| Terminal Size: | 10 sq-mm |
| Material: | Polyamide 6.6 |
| UNSPSC: | 39121410 |
| UPC: | 04050118024647 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$645.00 / 50Each
Typical price:$716.30 / Each
Quantity:

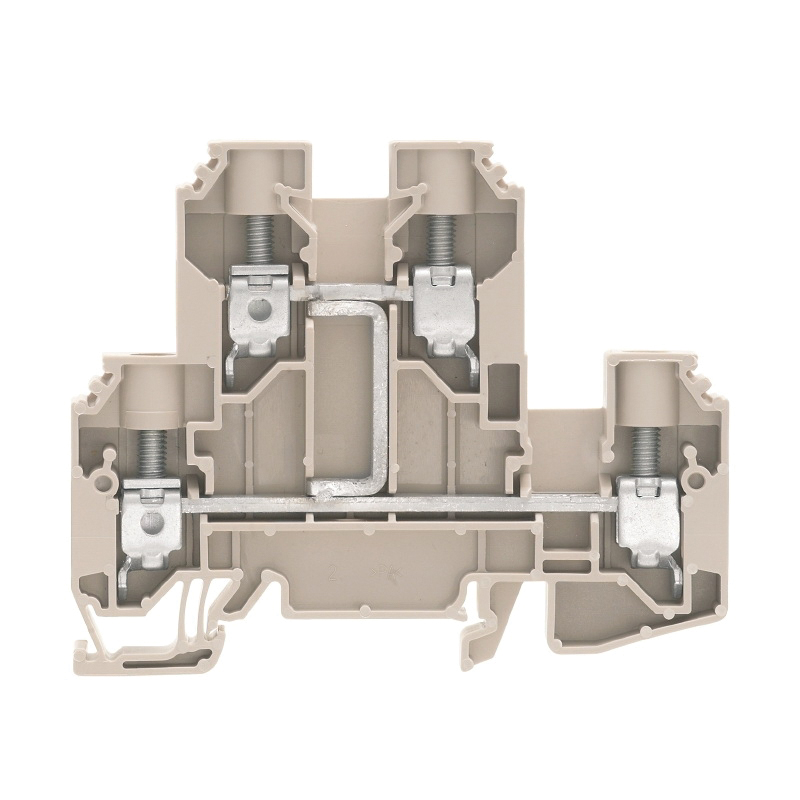

- Klippon Feed-Through Terminal Block, 2-Tier, Series: W Series, 800 V AC, 57 A, 16 to 6 AWG Wire, 12 mm Wire Strip Length, 10 sq-mm Terminal, 1.2 to 1.9 N-m, Snap-Fit Mount, Screw, -50 to 120 deg C, Polyamide 6.6, Dark Beige, 3.346 in H x 0.39 in W x 2.717 in D
1186770000 Item Features
- The W-Series is offered in standard and compact designs and he compact design is impressive with its small size for the design cross-sectional capacity
- The terminal unit consists of hardened steel, for very high contact force and he busbar is made of copper, which gives a low voltage drop
- Uniform size of the terminal block bodies from 2.5 to 10 sq-mm means fewer accessories, lowers the cost, offers logistical advantages and enables simple installation
- Safe operation
- UL 94 flammability rating V-0
- 1 number of potentials, 1 number of levels, 2 number of clamping points per level
- Right open sides
- 1 x 5.5 mm blade
- 0.56 mOhm volume-resistance
- Double terminal, vertically cross-connected, for screwable cross-connection, one end without connector
- 8 kV rated impulse withstand voltage
- WDK 10 V type
- https://www.youtube.com/watch?v=DBdk5eXPQb8
1186770000 Standards
CSA Certified|UL File No. E60693 Listed|IEC 60947-7-1|RoHS CompliantSKU #2261100Part Number #1186770000UNSPSC39121410UPC04050118024647
