1194610000
Weidmuller 1194610000 Terminal Block
Part Number # 1194610000
SKU # 2245166
$1057.23 / Each
Weidmuller 1194610000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1194610000 |
| SKU #: | 2245166 |
| Capacity: | 27 kg |
| NEMA Rating: | NEMA 3/4X/12/IP66/IP67 |
| Temperature Rating (Degrees F): | -60 to 135 deg C |
| Mounting type: | Terminal Rail/Plate |
| Width: | 260 mm |
| UNSPSC: | 39121327 |
| UPC: | 04032248977208 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1057.23 / Each
Quantity:
Weidmuller 1194610000 Terminal Block
Brand: Weidmuller
Part Number: 1194610000

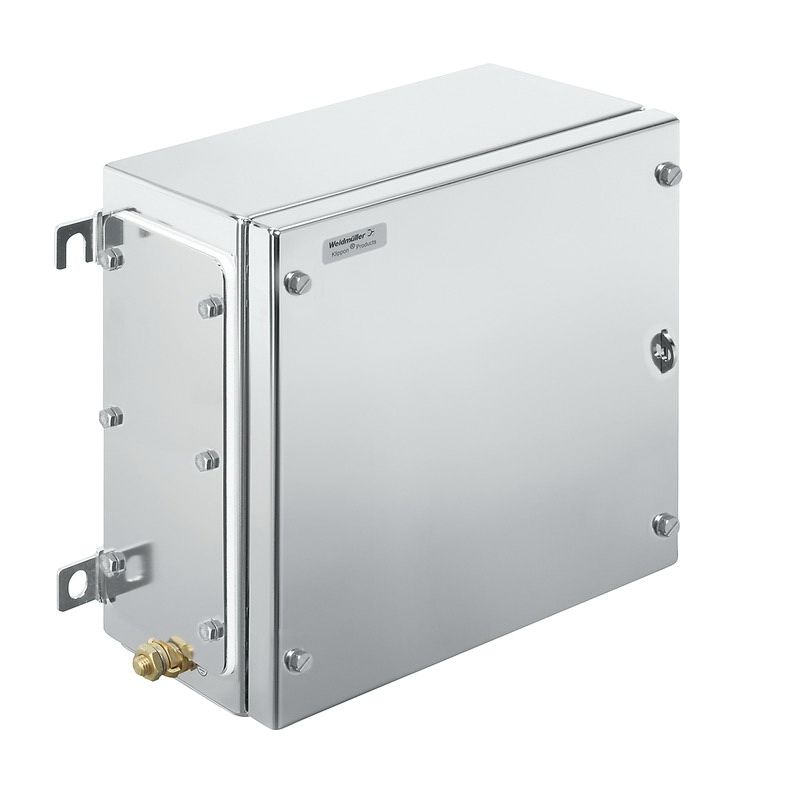

Additional Description: WEID-1194610000 KTB MH 262615 S4E1 EX METAL HOUSING, 260 X 260 X 150 MM, ELECTROPOLISHED, FLANGE PLATE: YES, BOTTOM, 4 HINGES AND M6 HEX-HEAD SLOTTED SCREWS SW10 Plate
Catalog Description: Metal enclosure for use in explosive risk zones. The fixing holes are located outside the sealed area. Wall mounting can be achieved using mounting holes or mounting feet.
1194610000 Application
Explosive Risk Zone, Process Industry, Oil and Gas Industry, Chemical Industry, Offshore and Onshore Applications1194610000 Item Features
- Equipped with up to 4 gland plates
- The gasket is protected against compression
- Completely removable padlock tab
- Cover lock outside the sealed zone
- Improved temperature performance
- Completely removable lid without a tool
- Earthing stud in the cover and base of the enclosure
- Welded mounting feet
1194610000 Standards
cULus Listed|REACH SVHC Lead 7439-92-1|RoHS Compliant|UL File No. E243298|DIN EN 62208/DIN EN 61373 Class 1B/DIN EN 15085-2|EN 60079-0/EN 60079-7/EN 60079-31|IEC 60079-0|IEC 60079-7|IEC 60079-31|ATEX File No. IBExU14ATEX1050/IBExU14ATEX1028 U|IECEx IECEXIBE14.0013/IECEx IBE 14.0004U|EAC RU C-DE.08.B.01328/RU C-DE.08.B.00472|INMETRO IEx 17.0021/IEx 17.0020U|AEx File No. E223792|NEPSI GYJ14.1308U/GYJ14.1309|KOSHA 16-AV4BO-0245X|MARITREG 15.40073.250|CCOE CCOEP267536/1|DNV-GL Approved|Ex ATEX PTB Certified|Ex ATEX KEMA Certified|IECEx Certified|IECEx-PTB|PCT ApprovedSKU #2245166Part Number #1194610000UNSPSC39121327UPC04032248977208
Image provided may only be a representation of final product and may include optional equipment
