1195090000
Weidmuller 1195090000 Terminal Block
Part Number # 1195090000
SKU # 2263748
$2719.04 / Each
Weidmuller 1195090000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1195090000 |
| SKU #: | 2263748 |
| Capacity: | 70 kg |
| Finish: | Electro Polished |
| NEMA Rating: | NEMA 3/4X/12/IP66/IP67 |
| Temperature Rating (Degrees F): | -60 to 135 deg C |
| Depth: | 200 mm |
| Height: | 458 mm |
| Mounting type: | Terminal Rail/Plate |
| Width: | 382 mm |
| UNSPSC: | 39121327 |
| UPC: | 04032248977963 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2719.04 / Each
Quantity:
Weidmuller 1195090000 Terminal Block
Brand: Weidmuller
Part Number: 1195090000

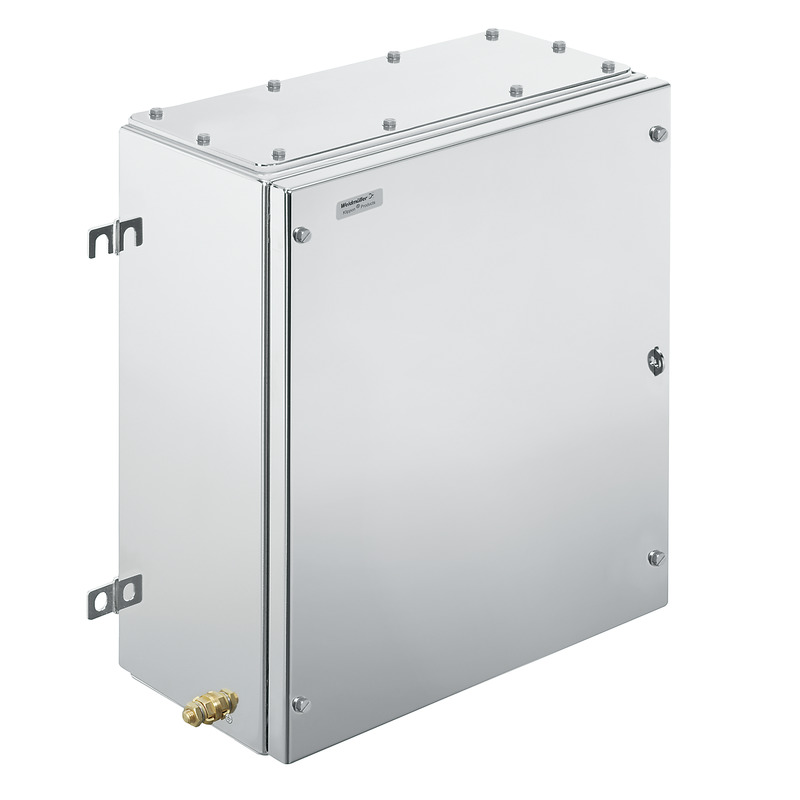

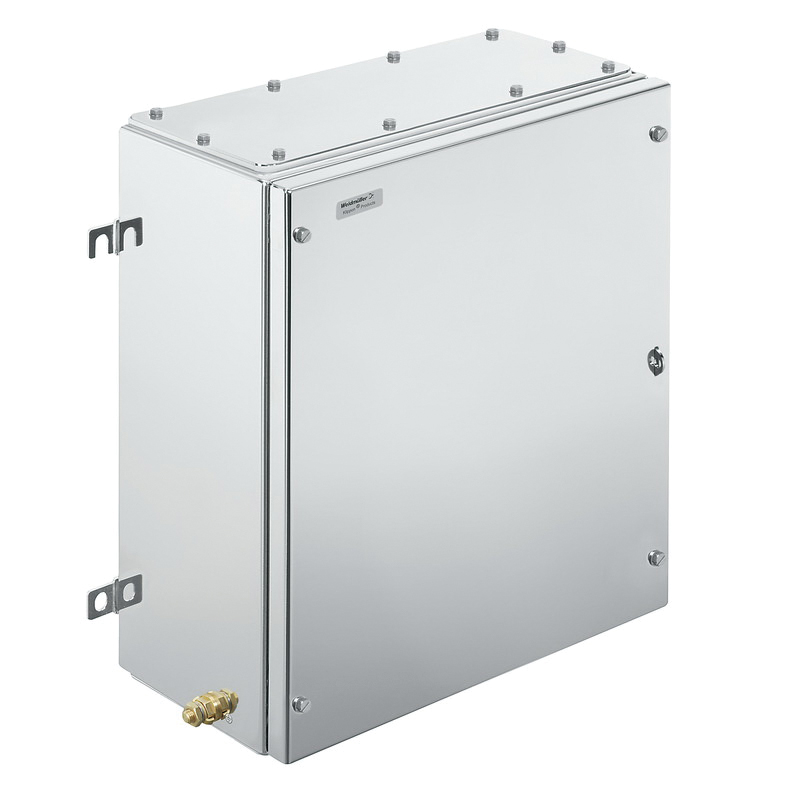

Additional Description: WEID-1195090000 (N) KTB MH 453820 S4E4 EX METAL HOUSING, 382 X 458 X 200 MM, ELECTROPOLISHED, FLANGE PLATE: YES, BOTTOM, TOP, LEFT, RIGHT, 4 HINGES AND M6 HEX-HEAD SLOTTED SCREWS SW10 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Metal enclosure for use in explosive risk zones. The fixing holes are located outside the sealed area. Wall mounting can be achieved using mounting holes or mounting feet.
1195090000 Application
Explosive Risk Zone, Process Industry, Oil and Gas Industry, Chemical Industry, Offshore and Onshore Applications1195090000 Item Features
- Equipped with up to 4 gland plates
- The gasket is protected against compression
- Completely removable padlock tab
- Cover lock outside the sealed zone
- Improved temperature performance
- Completely removable lid without a tool
- Earthing stud in the cover and base of the enclosure
- Welded mounting feet
1195090000 Standards
cULus Listed|REACH SVHC Lead 7439-92-1|RoHS Compliant|UL File No. E243298|DIN EN 62208/DIN EN 61373 Class 1B/DIN EN 15085-2|EN 60079-0/EN 60079-7/EN 60079-31|IEC 60079-0|IEC 60079-7|IEC 60079-31|ATEX File No. IBExU14ATEX1050/IBExU14ATEX1028 U|IECEx IECEXIBE14.0013/IECEx IBE 14.0004U|EAC RU C-DE.08.B.01328/RU C-DE.08.B.00472|INMETRO IEx 17.0021/IEx 17.0020U|AEx File No. E223792|NEPSI GYJ14.1308U/GYJ14.1309|KOSHA 16-AV4BO-0245X|MARITREG 15.40073.250|CCOE CCOEP267536/1|DNV-GL Approved|Ex ATEX PTB Certified|Ex ATEX KEMA Certified|IECEx Certified|IECEx-PTB|PCT ApprovedSKU #2263748Part Number #1195090000UNSPSC39121327UPC04032248977963
Image provided may only be a representation of final product and may include optional equipment
