1195190000
Weidmuller 1195190000 Terminal Block
Part Number # 1195190000
SKU # 2263709
$3393.98 / Each
Weidmuller 1195190000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1195190000 |
| SKU #: | 2263709 |
| Capacity: | 92 kg |
| Finish: | Electro Polished |
| NEMA Rating: | NEMA 3/4X/12/IP66/IP67 |
| Temperature Rating (Degrees F): | -60 to 135 deg C |
| Depth: | 200 mm |
| Height: | 480 mm |
| Mounting type: | Terminal Rail/Plate |
| Width: | 480 mm |
| UNSPSC: | 39121327 |
| UPC: | 04032248978151 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3393.98 / Each
Quantity:

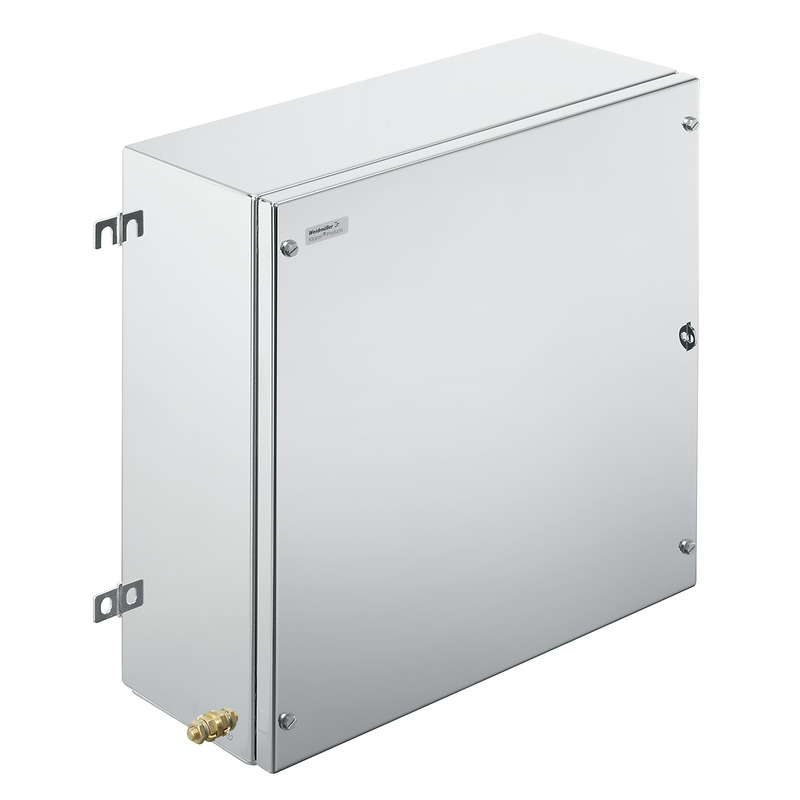

- Klippon Empty Enclosure, 480 mm Width, 200 mm D, 480 mm Height, NEMA 3/4X/12/IP66/IP67, Hinged Cover, Lock: Cover Lock, 4 Outlets, 92 kg, Terminal Rail/Plate Mount, -60 to 135 deg C, Stainless Steel, Electro Polished, Silver
1195190000 Application
Explosive Risk Zone, Process Industry, Oil and Gas Industry, Chemical Industry, Offshore and Onshore Applications1195190000 Item Features
- Equipped with up to 4 gland plates
- The gasket is protected against compression
- Completely removable padlock tab
- Cover lock outside the sealed zone
- Improved temperature performance
- Completely removable lid without a tool
- Earthing stud in the cover and base of the enclosure
- Welded mounting feet
1195190000 Standards
cULus Listed|REACH SVHC Lead 7439-92-1|RoHS Compliant|UL File No. E243298|DIN EN 62208/DIN EN 61373 Class 1B/DIN EN 15085-2|EN 60079-0/EN 60079-7/EN 60079-31|IEC 60079-0|IEC 60079-7|IEC 60079-31|ATEX File No. IBExU14ATEX1050/IBExU14ATEX1028 U|IECEx IECEXIBE14.0013/IECEx IBE 14.0004U|EAC RU C-DE.08.B.01328/RU C-DE.08.B.00472|INMETRO IEx 17.0021/IEx 17.0020U|AEx File No. E223792|NEPSI GYJ14.1308U/GYJ14.1309|KOSHA 16-AV4BO-0245X|MARITREG 15.40073.250|CCOE CCOEP267536/1|DNV-GL Approved|Ex ATEX PTB Certified|Ex ATEX KEMA Certified|IECEx Certified|IECEx-PTB|PCT ApprovedSKU #2263709Part Number #1195190000UNSPSC39121327UPC04032248978151
Image provided may only be a representation of final product and may include optional equipment
