Part Number # 1200600000
SKU # 2310064
Image Disclaimers Message
1200600000

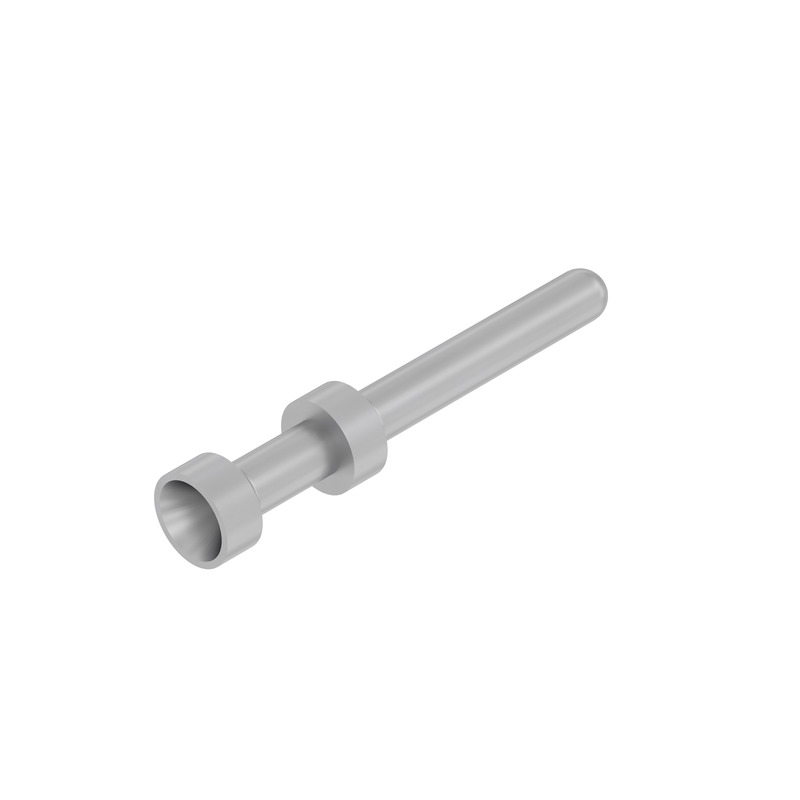

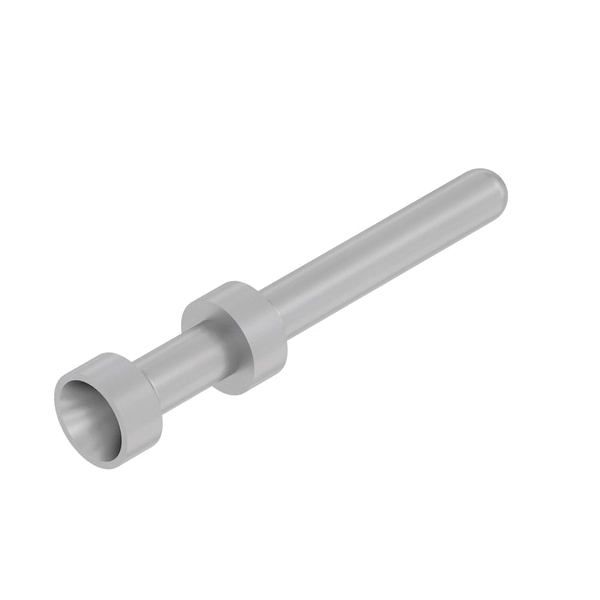

Weidmuller 1200600000 Connector Contact
Part Number # 1200600000
SKU # 2310064
Weidmuller 1200600000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1200600000 |
| SKU #: | 2310064 |
| Dimensions: | 4.5 mm Dia x 22.3 mm L |
| Finish: | Silver Plated |
| Series: | HE Series |
| Specifications: | 7.5 mm Stripping Length, >= 500 Plugging Cycles, 2.5 mm Contact Dia, 2 mOhm Volume Resistance, 2 to 3 um Surface Layer Thickness |
| Suitable For Use With: | RockStar HA, HE, HEE, HQ and MixMate Series Connector Insert, RockStar® HA, HE, HEE, HQ and MixMate Series Connector Insert |
| Terminal Type: | Crimp |
| Type: | Male Pin Turned |
| Country of origin: | DE |
| Material: | Copper Alloy |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04008190171308 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1200600000 Connector Contact
Brand: Weidmuller
Part Number: 1200600000
Weidmuller Connector Contact, Male Pin Turned, Series: HE Series, 0.75 to 1 sq-mm Wire/Contact, Crimp Terminal, For Use With: RockStar HA, HE, HEE, HQ and MixMate Series Connector Insert, Specifications: 7.5 mm Stripping Length, >= 500 Plugging Cycles, 2.5 mm Contact Dia, 2 mOhm Volume Resistance, 2 to 3 um Surface Layer Thickness, Copper Alloy, Silver Plated, 4.5 mm Dia x 22.3 mm L Dimensions
Additional Description: WEID-1200600000 HDC-C-HE-SM 0.75-1.00AG PK=100
Catalog Description: Contact element for connecting a conductor to an industrial connector.
1200600000 Includes
01200600000 Item Features
- Crimps provide a electrical and mechanical connection between wire and contact that is both secure and reliable
- Optimal crimp connection is gas tight and corrosion-resistant
1200600000 Standards
RoHS Compliant|REACH SVHC Lead 7439-92-1|EAC Certified|UL File No. E92202|CSA Certified|cULus RecognizedSKU #2310064Part Number #1200600000UNSPSC32151901UPC04008190171308
