1200950000
Weidmuller 1200950000 Terminal Block
Part Number # 1200950000
SKU # 2315764
$4660.26 / Each
Weidmuller 1200950000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1200950000 |
| SKU #: | 2315764 |
| Capacity: | 223 kg |
| NEMA Rating: | NEMA 3/4X/12/IP66 |
| Temperature Rating (Degrees F): | -60 to 135 deg C |
| Height: | 914 mm |
| Mounting type: | Terminal Rail/Plate |
| Width: | 610 mm |
| UNSPSC: | 39121327 |
| UPC: | 04032248983841 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4660.26 / Each
Quantity:
Weidmuller 1200950000 Terminal Block
Brand: Weidmuller
Part Number: 1200950000
Additional Description: WEID-1200950000 KTB QL 916120 S4E1 EX METAL HOUSING, 610 X 914 X 200 MM, ELECTROPOLISHED, FLANGE PLATE: YES, BOTTOM, QUARTER-TURN FASTENER WITH SLOTTED INSERT
Catalog Description: Metal enclosure for use in explosive risk zones. The fixing holes are located outside the sealed area. Wall mounting can be achieved using mounting holes or mounting feet.
1200950000 Application
Explosive Risk Zone, Process Industry, Oil and Gas Industry, Chemical Industry, Offshore and Onshore Applications1200950000 Item Features
- With up to 4 gland plates
- Gland plate fixing
- Quarter lock with slot insert as standard for lid fixing
- Gasket compression is controlled
- Silicone gasket for extreme temperature requirements
- Earth stud fitted to body and lid
- Mounting lugs pre fitted and ensure secure product mounting
1200950000 Standards
cULus Listed|REACH SVHC Lead 7439-92-1|RoHS Compliant|UL File No. E243298|DIN EN 62208/DIN EN 61373 Class 1B/DIN EN 15085-2|EN 60079-0/EN 60079-7/EN 60079-3|ATEX File No. IBExU14ATEX1050/IBExU14ATEX1028 U|IECEx IECEXIBE14.0013/IECEx IBE 14.0004U|EAC RU C-DE.08.B.01328/RU C-DE.08.B.00472|INMETRO IEx 17.0021/IEx 17.0020U|AEx File No. E223792|NEPSI GYJ14.1308U/GYJ14.1309|KOSHA 16-AV4BO-0245X|PCT Approved|DNV-GL ApprovedSKU #2315764Part Number #1200950000UNSPSC39121327UPC04032248983841

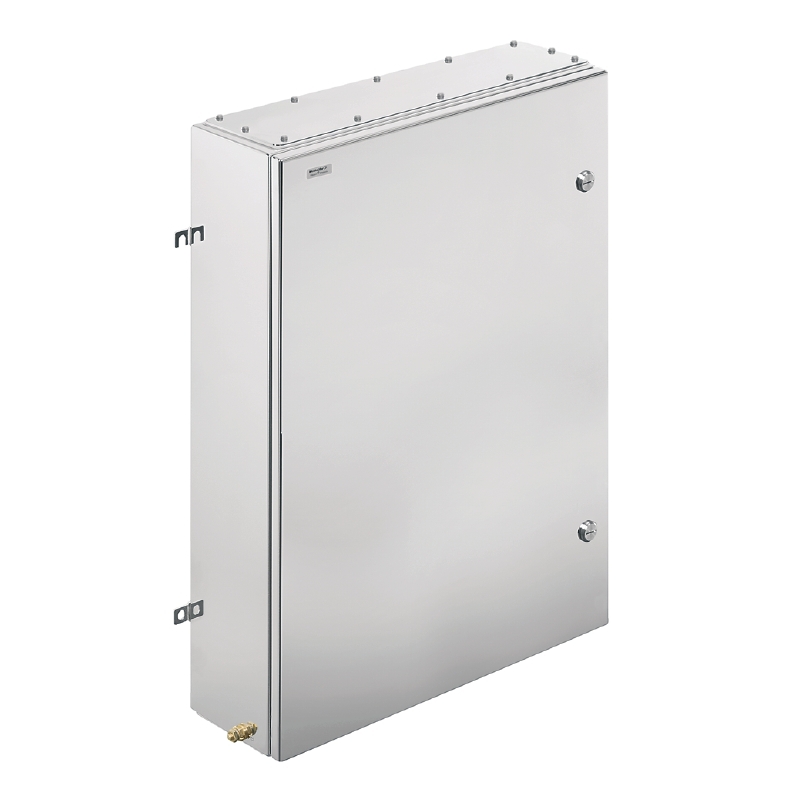

Image provided may only be a representation of final product and may include optional equipment
