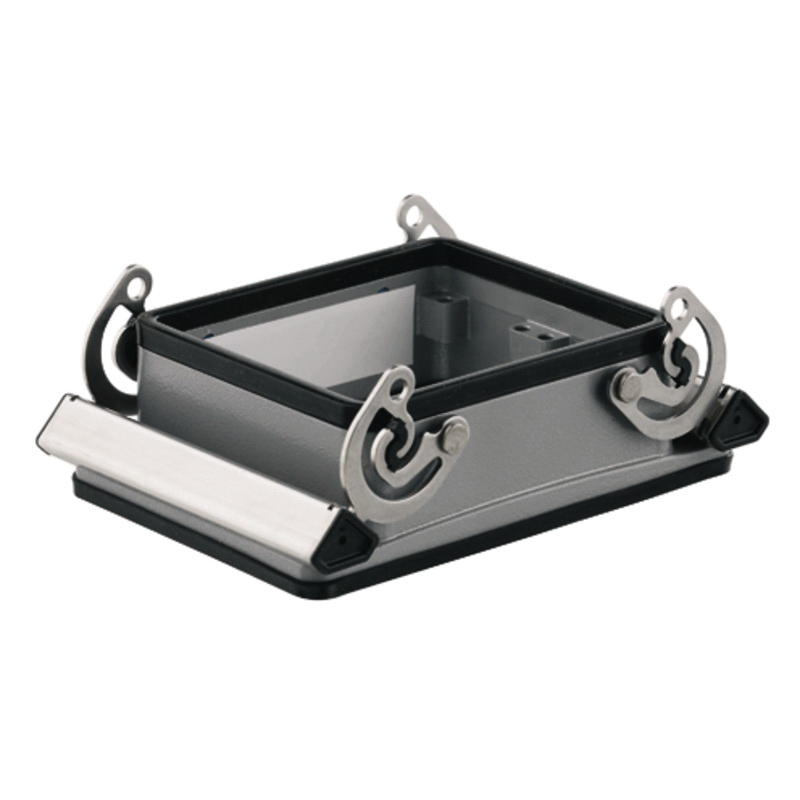

Weidmuller 1217800000 Bulkhead Pass Through Connector
Part Number # 1217800000
SKU # 2404225
1217800000
Weidmuller 1217800000 Bulkhead Pass Through Connector
Part Number # 1217800000
SKU # 2404225
Weidmuller 1217800000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1217800000 |
| SKU #: | 2404225 |
| Connector Size: | SZ 10 |
| Connector Type: | Side Locking Clamp |
| Dimensions: | 5.488 in L x 3.819 in W x 1.496 in H |
| Series: | RockStar |
| Suitable For Use With: | HDC 32B Insert and Base |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04008190148393 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1217800000 Bulkhead Pass Through Connector
Brand: Weidmuller
Part Number: 1217800000
Weidmuller Rectangular Housing, Heavy Duty, Series: RockStar®, 32 Positions, Panel Mount, Side Locking Clamp Connector, SZ 10 Connector, -40 to 125 deg C, For Use With: HDC 32B Insert and Base, Aluminum, Powder Coated, Gray, 5.488 in L x 3.819 in W x 1.496 in H
Additional Description: WEID-1217800000 HDC 32B ABU HOUSING (INDUSTRY PLUG-IN CONNECTORS), BULKHEAD HOUSING, SIDE-LOCKING CLAMP ON LOWER SIDE, SIZE: 10, IP65 (IN PLUGGED CONDITION)
Catalog Description: The special die-cast alloy and multi-layered surface sealing provide complete protection for the enclosure.
1217800000 Application
Industrial1217800000 Item Features
- The housing interlock system provides integrated safety
- The laser marking allows for easy and quick identification
- Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned
- For industrial housings with IP 65 protection
- Stainless steel, rust-proof material of locking element
- NBR Sealing
- Dust tight, water resistant
- UL 94 V-0 flammability
- Standard design
- Bulkhead enclosure
- Side-locking clamp on lower side
- Made of die cast aluminium
- IP65/NEMA type 12, 4X housing
1217800000 Standards
UL E92202|cURus Listed|RoHS CompliantSKU #2404225Part Number #1217800000UNSPSC32151901UPC04008190148393
Image provided may only be a representation of final product and may include optional equipment
