1218410000
Weidmuller 1218410000 General Purpose Relay
Part Number # 1218410000
SKU # 2431396
$528.60 / 10Each
Weidmuller 1218410000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1218410000 |
| SKU #: | 2431396 |
| Dimensions: | 77.6 mm H x 15.6 mm W x 61.6 mm D |
| Series: | RIDERSERIES |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39122325 |
| UPC: | 04050118002416 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$528.60 / 10Each
Quantity:
Weidmuller 1218410000 General Purpose Relay
Brand: Weidmuller
Part Number: 1218410000
Additional Description: WEID-1218410000 RCIKIT 24VDC 2CO LD/FG RELAY MODULE, 24 V DC ±10 %, GREEN LED, FREE-WHEELING DIODE, 2 CO CONTACTS FORCIBILY GUIDED (EN 61810-3 TYPE B) (AGCUNI) , 250 V AC, 6 A, SCREW CONNECTION, TEST BUTTON AVAILABLE: NO
Catalog Description: Assembly of plug-in relay and plug-in socket. Control circuit and load circuit are electrically isolated.
1218410000 Item Features
- Coupling relay with positively driven contacts for monitoring signals within safety critical circuits
- Relays with positively driven contacts have a 99% diagnostics coverage and an excellent reputation for use in safety systems
- The contacts interlock with each other in order to ensure a synchronous switching status between both contacts
- This guarantees that the alert contact will maintain the same switching status in the event of an error (for example, if the working contact melts from an overload)
- Relay socket for rail mounting
- Retaining clip
- Pluggable relay modules
- Markers
1218410000 Standards
RoHS Compliant|REACH SVHC Lead 7439-92-1 Compliant|DIN EN 50205|cULus File No. E223759 Recognized|UL 94 V-1 Flammability Rating|CE CertifiedSKU #2431396Part Number #1218410000UNSPSC39122325UPC04050118002416

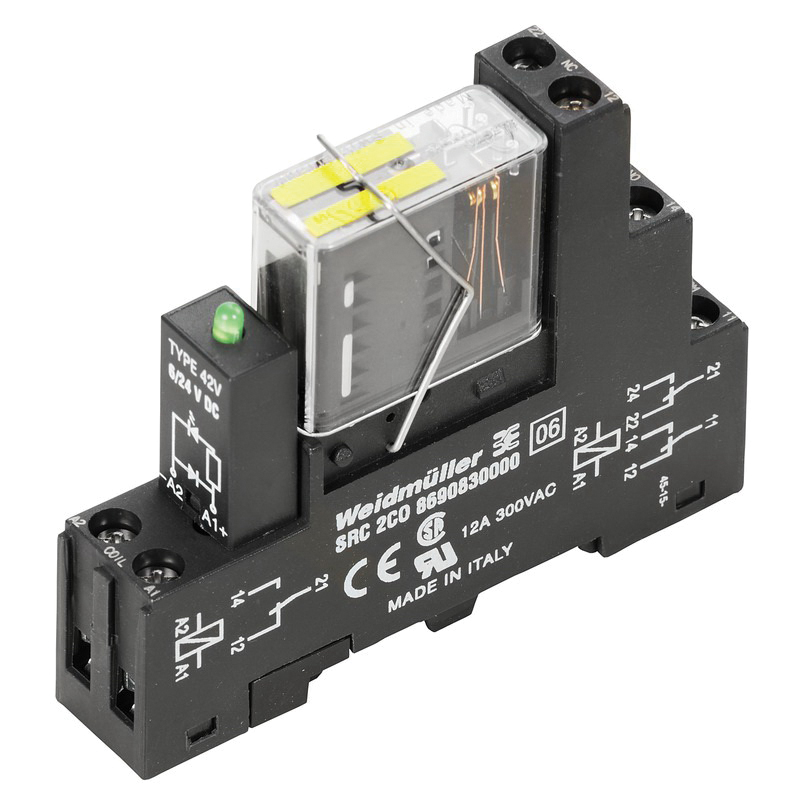

Image provided may only be a representation of final product and may include optional equipment
