1219130000

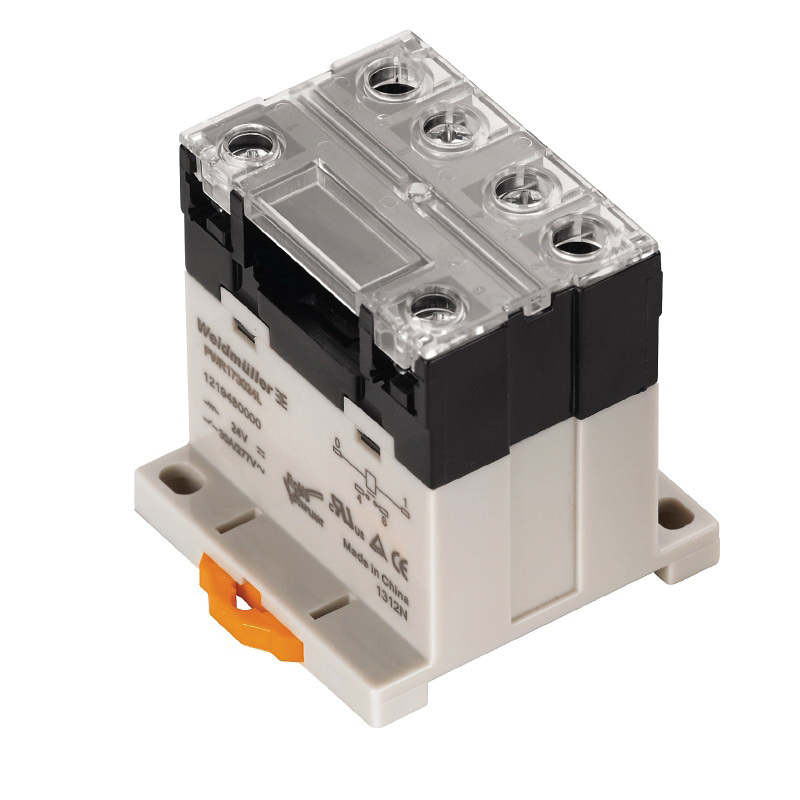

Weidmuller 1219130000 General Purpose Relay
Part Number # 1219130000
SKU # 2426570
$213.10 / 10Each
Typical price:$228.70 / Each
Weidmuller 1219130000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1219130000 |
| SKU #: | 2426570 |
| Amperage Rating: | 30 A |
| Coil Voltage: | 115 V AC |
| Contact Form: | 1NO 1 Form A |
| Dimensions: | 34 mm H x 50.5 mm W x 55 mm D |
| Enclosure Type: | IP10 |
| Series: | D Series |
| Temperature Rating (Degrees F): | -25 to 55 deg C |
| Terminal Type: | Screw |
| Type: | High Power |
| Country of origin: | CN |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39122325 |
| UPC: | 04032248998999 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$213.10 / 10Each
Typical price:$228.70 / Each
Quantity:
- Weidmuller Relay Module, High Power, Series: D Series, 30 A, 2.5 VA Power, 115 V AC Coil, 1NO 1 Form A Contact Form, DIN Rail Mounting, Screw Terminal, IP10 Enclosure, -25 to 55 deg C, 34 mm H x 50.5 mm W x 55 mm D Dimensions
1219130000 Item Features
- Dual contact with series connected contacts
- Wide range of coil voltages
- With integrated status display
1219130000 Standards
RoHS Compliant|UL File No. E312083|REACH SVHC Lead 7439-92-1|cULus File No. E312083 Recognized|IEC 61810-1|EN 60664-1:2007, EN 61000-6-2:2005, EN 61000-6-4:2007 + A1:2011|UL 508|CE Certified|TUV Approved|EAC CertifiedSKU #2426570Part Number #1219130000UNSPSC39122325UPC04032248998999
Image provided may only be a representation of final product and may include optional equipment
