Weidmuller 1224390000 Omnimate Signal Pcb Plug-In Connector
Part Number # 1224390000
SKU # 2386043
Weidmuller 1224390000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1224390000 |
| SKU #: | 2386043 |
| Connector Type: | Male Header |
| Dimensions: | 14 mm H x 45.6 mm W x 14.2 mm D |
| Number of Positions: | 24 |
| Series: | B2C/S2C 3.50 Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Termination Type: | THT/THR Solder |
| Type: | Board Connection |
| Color: | Black |
| Contact material: | Copper alloy |
| Country of origin: | CZ |
| Housing material: | LCP GF |
| Mounting type: | PCB |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151902 |
| UPC: | 04050118008227 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1224390000 Omnimate Signal Pcb Plug-In Connector
Brand: Weidmuller
Part Number: 1224390000
Weidmuller OMNIMATE Signal PCB Plug-In Connector, Board Connection, Series: B2C/S2C 3.50 Series, 24 Positions, 1 Row, 3.5 mm Pitch/Row Spacing, PCB Mounting, 150/200 V, Male Header Connector, THT/THR Solder Termination, Copper Alloy Contact, LCP GF Housing Material, -50 to 120 deg C, Black, 14 mm H x 45.6 mm W x 14.2 mm D Dimensions

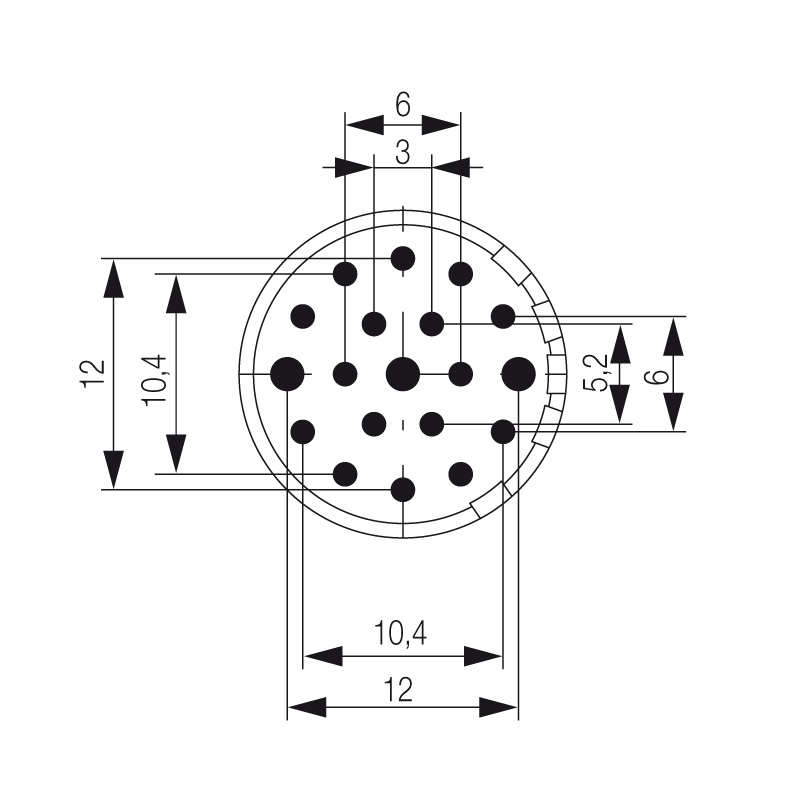

Additional Description: WEID-1224390000 SAI-M23-SE-19-F CONTACT INSERT (CIRCULAR CONNECTOR), SOLDER PIN, SOLDER CUP, SOLDER CUPS, M23, NUMBER OF POLES: 19, CODING: NONE
Catalog Description: Contact insert for circular plug-in connector to install in an enclosure.
1224390000 Includes
01224390000 Item Features
- High temperature-resistant male header
- Finger safe
- Can be plugged into female plug B2CF 3.50 PUSH-IN
- Plug-in direction is perpendicular or parallel to the circuit board (180 deg/ 90 deg)
- Suitable for reflow and wave soldering applications
- 200 V IEC, 150 V UL
1224390000 Standards
RoHS Compliant|IEC 60664-1, 61984|CSA No. 200039-1121690|UL 1059|cULus No. E60693 Recognized|EAC Certified|UL 94 V-0 Flammability RatingSKU #2386043Part Number #1224390000UNSPSC32151902UPC04050118008227
