Part Number # 1224400000
SKU # 2386044
Image Disclaimers Message
1224400000
Weidmuller 1224400000 Rectangular Housing
Part Number # 1224400000
SKU # 2386044
Weidmuller 1224400000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1224400000 |
| SKU #: | 2386044 |
| Connector Size: | SZ 8 |
| Connector Type: | End Locking Clamp |
| Dimensions: | 6.417 in L x 2.165 in W x 1.154 in H |
| Finish: | Powder Coated |
| Number of Positions: | 24 |
| Series: | RockStarÂ, RockStar® |
| Suitable For Use With: | HDC 24B Insert and Hood |
| Temperature Rating (Degrees F): | -40 to 125 deg C |
| Type: | Heavy Duty |
| Color: | Gray |
| Country of origin: | CN |
| Material: | Aluminum |
| Mounting type: | Panel |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151902 |
| UPC: | 04050118008548 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1224400000 Rectangular Housing
Brand: Weidmuller
Part Number: 1224400000
Weidmuller Rectangular Housing, Heavy Duty, Series: RockStar , 24 Positions, Panel Mount, End Locking Clamp Connector, SZ 8 Connector, -40 to 125 deg C, For Use With: HDC 24B Insert and Hood, Aluminum, Powder Coated, Gray, 6.417 in L x 2.165 in W x 1.154 in H

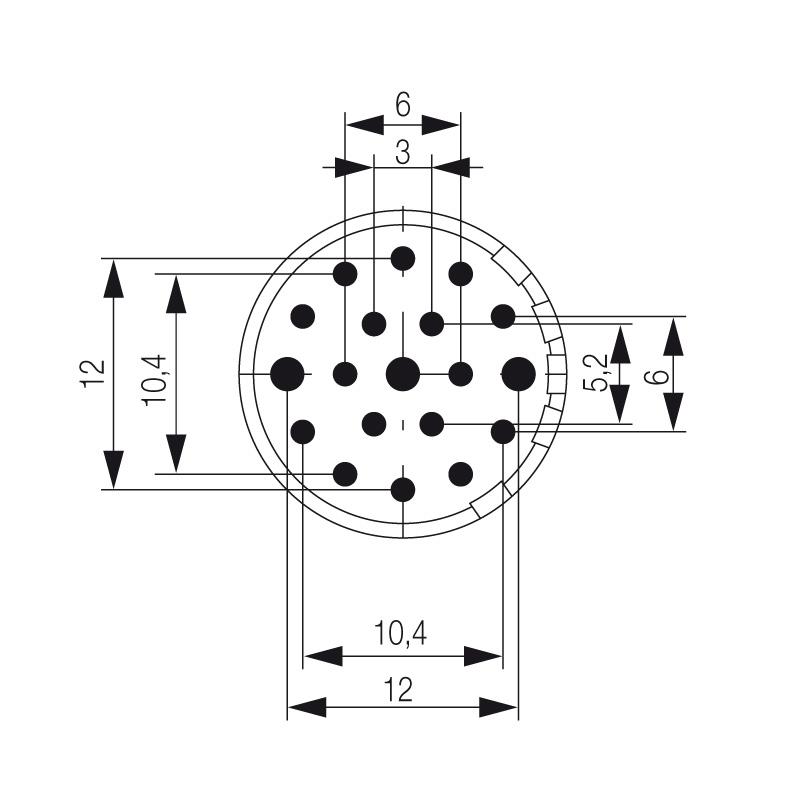

Additional Description: WEID-1224400000 SAI-M23-BE-19-F CONTACT INSERT (CIRCULAR CONNECTOR), SOLDER SOCKET, SOLDER CUP, SOLDER CUPS, M23, NUMBER OF POLES: 19, CODING: NONE
Catalog Description: Contact insert for circular plug-in connector to install in an enclosure.
1224400000 Application
Industrial1224400000 Includes
01224400000 Item Features
- The housing interlock system provides integrated safety
- The laser marking allows for easy and quick identification
- Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned
- For industrial housings with IP 65 protection
- Stainless steel, rust-proof material of locking element
- NBR Sealing
- Dust tight, water resistant
- UL 94 V-0 flammability
- Standard design
- Bulkhead enclosure
- Side-locking clamp on lower side
- Made of die cast aluminium
- IP65/NEMA type 12, 4X housing
1224400000 Standards
UL E92202|cURus Listed|RoHS CompliantSKU #2386044Part Number #1224400000UNSPSC32151902UPC04050118008548
