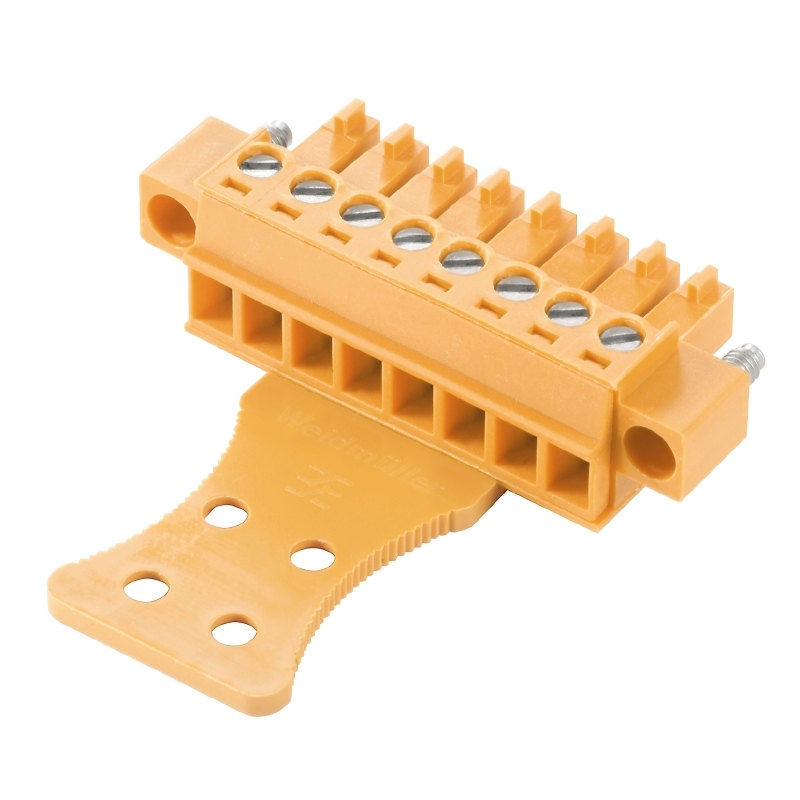

Weidmuller 1236590000 Terminal Block
Part Number # 1236590000
SKU # 2265591
$385.50 / 50Each
Typical price:$443.70 / Each
Weidmuller 1236590000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1236590000 |
| SKU #: | 2265591 |
| Dimensions: | 12.5 mm H x 40.9 mm W x 39.8 mm D |
| Series: | BCZ 3.81 |
| UNSPSC: | 31163101 |
| UPC: | 04050118022063 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$385.50 / 50Each
Typical price:$443.70 / Each
Quantity:
- Weidmuller, 1236590000, Board Connector, Field Connection, Series: BCZ 3.81, 8 Positions, 1 Rows, 3.81 mm Pitch/Row Spacing, PCB Mounting, 28 to 16 AWG Wire, 300, 320 V, Female Plug Connector, Clamping Yoke Termination, Copper alloy Contact, PA 66 GF 30 Housing Material, -50 to 120 deg C, Orange, 12.5 mm H x 40.9 mm W x 39.8 mm D Dimensions
1236590000 Item Features
- Female socket connectors with clamping-yoke screw system for connecting wires
- Three wire-outlet directions are available and provide flexible connection-level design options
- There are three housing shapes, covering many different requirements, to choose from Weidmullers 3.81-mm-pitch (0.15 in) plug-in connectors are compatible with the layouts of customary connectors and offer space for labelling and coding
- 180 deg wire parallel to plugging direction
- 90 deg wire perpendicular and above plugging direction
- 270 deg wire perpendicular and below plugging direction
- Standard housing without flange
- Flange with screw (F)
- Flange featuring Weidmullers patented release latch (LR) for lock-and-release latching with no strain and no tools needed
1236590000 Standards
RoHS Compliant|cURus Listed|EAC CertifiedSKU #2265591Part Number #1236590000UNSPSC31163101UPC04050118022063
Image provided may only be a representation of final product and may include optional equipment
