Part Number # 1255280000
SKU # 2342764
Image Disclaimers Message
1255280000

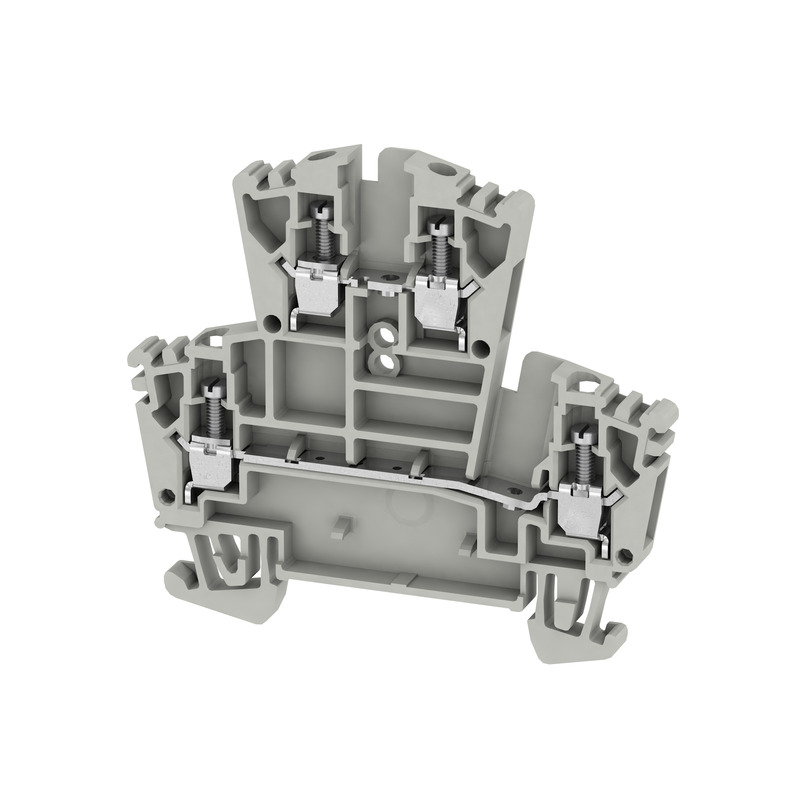

Weidmuller 1255280000 Klippon Terminal Block
Part Number # 1255280000
SKU # 2342764
$410.00 / 100Each
Typical price:$445.00 / Each
Weidmuller 1255280000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1255280000 |
| SKU #: | 2342764 |
| Dimensions: | 69.5 mm H x 5.1 mm W x 63 mm D |
| Series: | W Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Terminal Size: | M2.5 |
| Torque Rating: | 0.4 to 0.6 N-m |
| Type: | Double Tier Feed-Through Modular |
| Wire Size: | 2.5 sq-mm |
| Color: | Gray |
| Connection type: | Screw |
| Country of origin: | DE |
| Material: | Wemid |
| Mounting type: | Snap-On |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118048124 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$410.00 / 100Each
Typical price:$445.00 / Each
Quantity:
Weidmuller 1255280000 Klippon Terminal Block
Brand: Weidmuller
Part Number: 1255280000
Additional Description: WEID-1255280000 WDK 2.5 GR MULTI-TIER MODULAR TERMINAL, SCREW CONNECTION, 2.5 MM, 400 V, NUMBER OF LEVELS: 2, GREY
Catalog Description: Terminal block with several levels for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity. Space-saving design.
1255280000 Item Features
- Klippon connect with clamping yoke technology
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
1255280000 Standards
RoHS Compliant|UL File No. E60693|UL 94 V-0 Flammability Rating|UL/cULus File No. E60693|ATEX File No. DEMKO15ATEX1346U|IECEX File No. IECEXULD15.0003U|CE Certified|EAC Certified|IEC Ex Certified|KEMA-KEUR CertifiedSKU #2342764Part Number #1255280000UNSPSC39121410UPC04050118048124
