1277530000

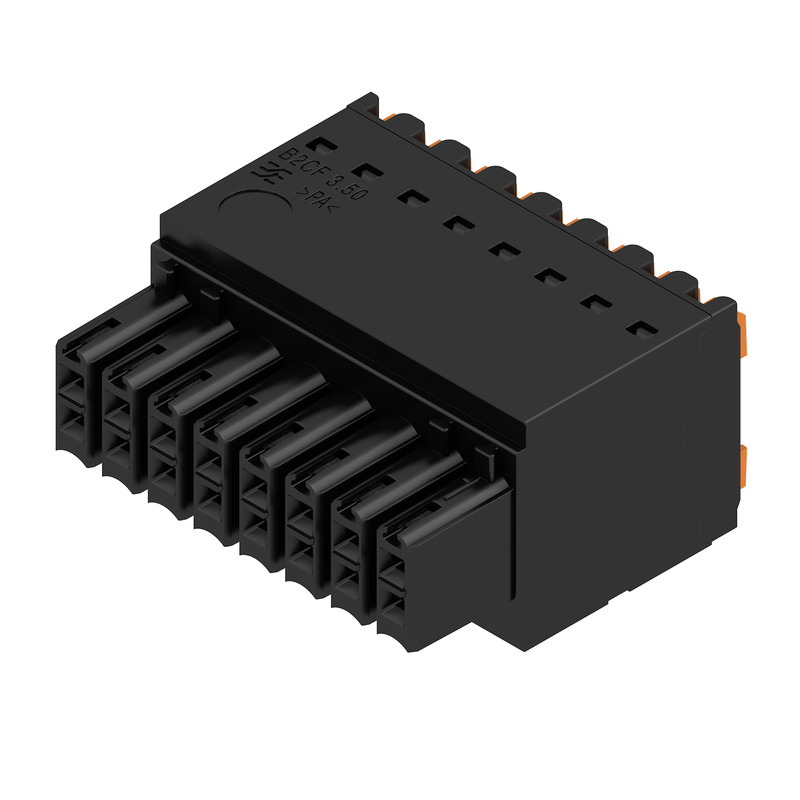

Weidmuller 1277530000 Terminal Block
Part Number # 1277530000
SKU # 2264167
$717.42 / 66Each
Typical price:$826.12 / Each
Weidmuller 1277530000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1277530000 |
| SKU #: | 2264167 |
| Connector Type: | Female Plug |
| Dimensions: | 15.2 mm H x 28 mm W x 26.25 mm D |
| Number of Positions: | 16 |
| Series: | B2C/S2C 3.50 |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Termination Type: | Push-In/Tension Clamp |
| Type: | Wire Connection |
| Wire Size: | 26 to 16 AWG |
| Contact material: | Copper alloy |
| Country of origin: | DE |
| Housing material: | PA 66 GF 30 |
| Insulation resistance: | >=10^8 Ohm |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163101 |
| UPC: | 04050118067804 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$717.42 / 66Each
Typical price:$826.12 / Each
Quantity:
- Weidmuller OMNIMATE Signal PCB Plug-In Connector, Wire Connection, Series: B2C/S2C 3.50, 16 Positions, 2 Rows, 3.5 mm Pitch/Row Spacing, 26 to 16 AWG Wire, 300/320 V, Female Plug Connector, Push-In/Tension Clamp Termination, Copper Alloy Contact, >=10^8 Ohm Insulation Resistance, PA 66 GF 30 Housing Material, -50 to 120 deg C, Black, 15.2 mm H x 28 mm W x 26.25 mm D Dimensions
1277530000 Item Features
- Two-row female plug with PUSH-IN spring connection
- Simply insert the prepared wire and youre done
- Intuitive to use because the wire-entry area and handling area are clearly separated
- Integrated pushbuttons for opening the terminal point
- High component density because of low heights
- 320 V IEC, 300 V UL
1277530000 Standards
RoHS Compliant|IEC 60664-1, 61984|CSA No. 200039-1121690|UL 1059|cULus No. E60693 Recognized|UL 94 V-0 Flammability Rating|EAC CertifiedSKU #2264167Part Number #1277530000UNSPSC31163101UPC04050118067804
Image provided may only be a representation of final product and may include optional equipment
