Part Number # 1303890000
SKU # 2424392
Image Disclaimers Message
Brand: Weidmuller
1303890000

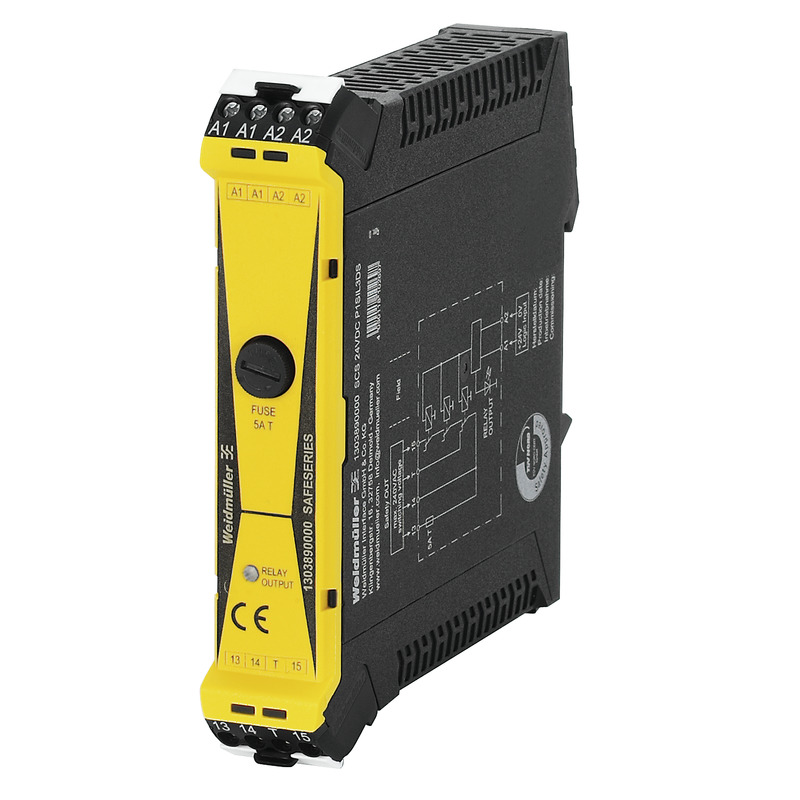

Weidmuller 1303890000 SAFESERIES SIL Safety Relay With Monitoring Circuit, 1NO Contact, 24 VDC V Coil
Part Number # 1303890000
SKU # 2424392
$106.73 / Each
Weidmuller 1303890000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1303890000 |
| SKU #: | 2424392 |
| Coil Voltage: | 24 VDC |
| Contact Form: | 1NO |
| Dimensions: | 117.3 mm H x 22.5 mm W x 114.1 mm D |
| Enclosure Type: | IP20 |
| Series: | SAFESERIES SIL |
| Temperature Rating (Degrees F): | -25 to 50 deg C |
| Terminal Type: | Screw |
| Country of origin: | DE |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39122325 |
| UPC: | 04050118102697 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$106.73 / Each
Quantity:
Weidmuller 1303890000 SAFESERIES SIL Safety Relay With Monitoring Circuit, 1NO Contact, 24 VDC V Coil
Brand: Weidmuller
Part Number: 1303890000
Additional Description: WEID-1303890000 SCS 24VDC P1SIL3DS SAFETY RELAY, MAX. SWITCHING CURRENT, INTERNAL FUSE : 5 A (REFER TO DERATING CURVE), SIL 3, EN 61508:2010
Catalog Description: The safety relay as an interface between the safety control and field level to provide safe disconnection of system components.
1303890000 Item Features
- Wide range input voltage in the monitoring circuit
- Externally accessible fuse
1303890000 Standards
RoHS Compliant|UL File No. E223474|REACH SVHC Lead 7439-92-1|cULus File No. E223474|EN 50178, EN 61000, EN 61326-3-2|SIL 3|DIN EN 61508|TUV Approved|CE Certified|EAC CertifiedSKU #2424392Part Number #1303890000UNSPSC39122325UPC04050118102697
