Brand: Weidmuller

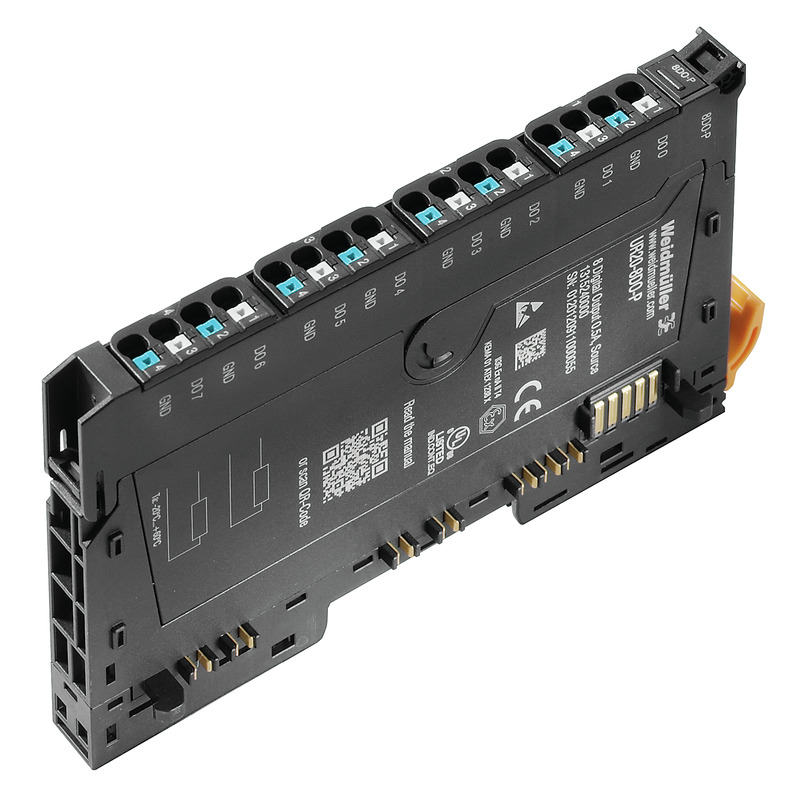

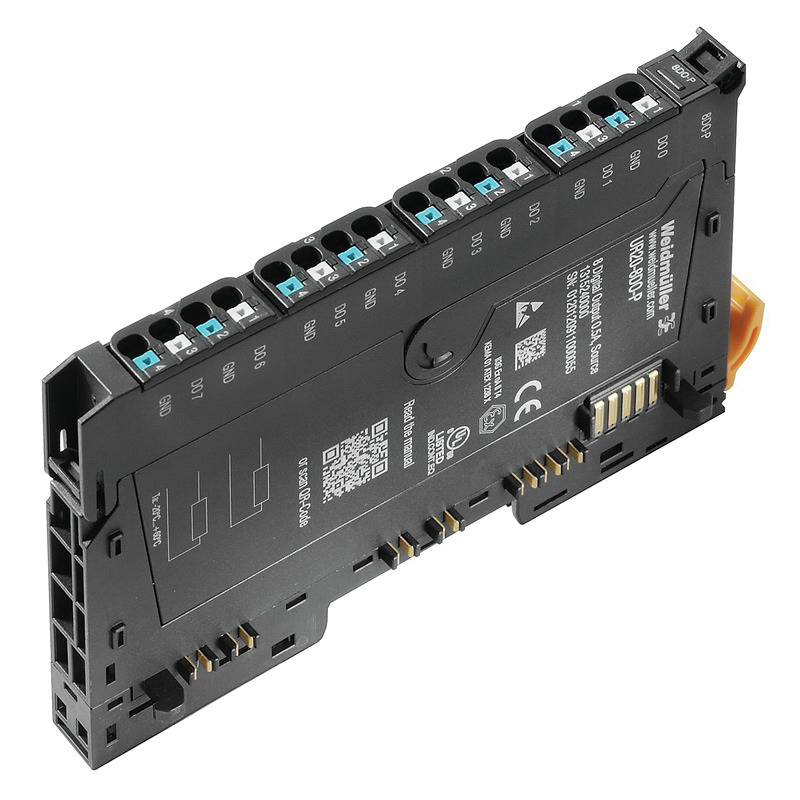

Weidmuller 1315240000 Digital Remote I/O Module, 8 Outputs
Image Disclaimers Message
Brand: Weidmuller
Weidmuller 1315240000 Digital Remote I/O Module, 8 Outputs
Brand: Weidmuller
Weidmuller 1315240000 Digital Remote I/O Module, 8 Outputs
Part #:1315240000
SKU #: 2347325
$75.30/EA
Key Features
Part #:1315240000
SKU #: 2347325
Brand: Weidmuller
Amperage Rating: 8 mA
Dimensions: 120 mm H x 11.5 mm W x 76 mm D
Temperature Rating (Degrees F): -20 to 60 deg C
Terminal Type: Push-In
Type: Digital
$75.30/EA
- The module electronics supply the connected actuators from the output current path
- Can be loaded up to 0.5 A per channel
- Short circuit proof
- 2-wire connection
- Positive switching
- DC-13 load
Specifications
Brand: Weidmuller
Amperage Rating: 8 mA
Dimensions: 120 mm H x 11.5 mm W x 76 mm D
Temperature Rating (Degrees F): -20 to 60 deg C
Terminal Type: Push-In
Type: Digital
Voltage Rating: 24 VDC
Number of outputs: 8
UNSPSC: 32151602
UPC: 04050118118247
Weidmuller 1315240000 Digital Remote I/O Module, 8 Outputs
Weidmuller Remote I/O Module, Digital, 8 Outputs, 24 VDC, 8 mA, Push-In Terminal, -20 to 60 deg C, 120 mm H x 11.5 mm W x 76 mm D Dimensions
Additional Description: WEID-1315240000 UR20-8DO-P DIGITAL OUTPUT MODULE (I/O)
Catalog Description: Digital output module for transmission of binary signals.
