Brand: Weidmuller

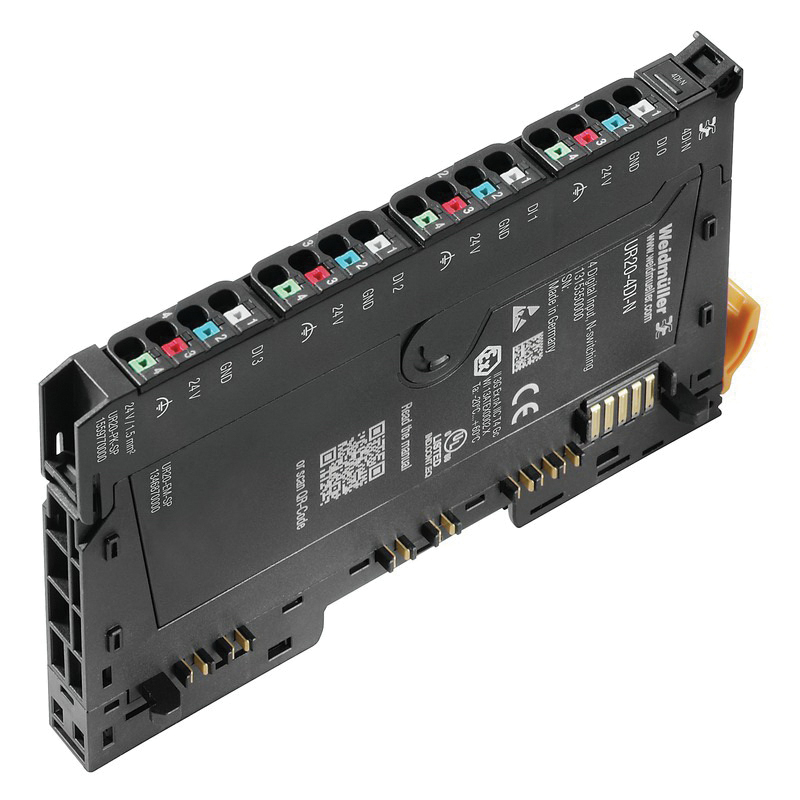

Weidmuller 1315350000 Remote I/O Module
Image Disclaimers Message
Brand: Weidmuller
Weidmuller 1315350000 Remote I/O Module
Brand: Weidmuller
Weidmuller 1315350000 Remote I/O Module
Part #:1315350000
SKU #: 2405366
$48.08/EA
Key Features
Part #:1315350000
SKU #: 2405366
Brand: Weidmuller
Amperage Rating: 8 mA
Dimensions: 120 mm H x 11.5 mm W x 76 mm D
Temperature Rating (Degrees F): -20 to 60 deg C
Terminal Type: Push-In
Type: Digital
$48.08/EA
- The module electronics supply the connected sensors from the input current path
- Negative switching
- Reverse polarity protection
- 2-wire, 3-wire and 3-wire+FE connection
- Input filter can be set channel by channel
- Integrated sensor supply
Specifications
Brand: Weidmuller
Amperage Rating: 8 mA
Dimensions: 120 mm H x 11.5 mm W x 76 mm D
Temperature Rating (Degrees F): -20 to 60 deg C
Terminal Type: Push-In
Type: Digital
Voltage Rating: 24 VDC
Number of inputs: 4
UNSPSC: 32151602
UPC: 04050118118421
Weidmuller 1315350000 Remote I/O Module
Weidmuller Remote I/O Module, Digital, 4 Inputs, 24 VDC, 8 mA, Push-In Terminal, -20 to 60 deg C, 120 mm H x 11.5 mm W x 76 mm D Dimensions
Additional Description: WEID-1315350000 UR20-4DI-N DIGITAL INPUT MODULE (I/O)
Catalog Description: Digital input module for transmission of binary signals.
