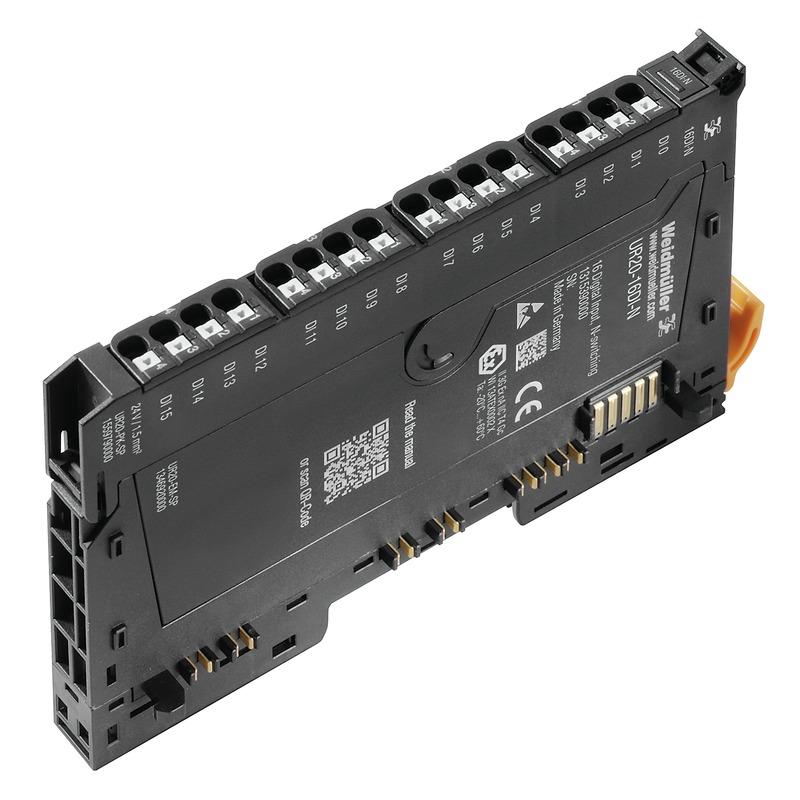

Weidmuller 1315390000 Digital Remote I/O Module, 16 Inputs
Part Number # 1315390000
SKU # 2359825
$121.93 / Each
Weidmuller 1315390000 Key Features
Brand: | Weidmuller |
---|---|
Part Number # : | 1315390000 |
SKU #: | 2359825 |
Amperage Rating: | 8 mA |
Dimensions: | 120 mm H x 11.5 mm W x 76 mm D |
Temperature Rating (Degrees F): | -20 to 60 deg C |
Terminal Type: | Push-In |
Type: | Digital |
Country of origin: | DE |
Number of inputs: | 16 |
Manufacturer Name: | Weidmuller |
UNSPSC: | 32151602 |
UPC: | 04050118118582 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$121.93 / Each
Quantity:
Weidmuller 1315390000 Digital Remote I/O Module, 16 Inputs
Brand: Weidmuller
Part Number: 1315390000
Weidmuller Remote I/O Module, Digital, 16 Inputs, 24 VDC, 8 mA, Push-In Terminal, -20 to 60 deg C, 120 mm H x 11.5 mm W x 76 mm D Dimensions
Additional Description: WEID-1315390000 UR20-16DI-N DIGITAL INPUT MODULE (I/O)
Catalog Description: Digital input module for transmission of binary signals.
1315390000 Application
Transmitter, Switch and Proximity Sensor Applications1315390000 Includes
01315390000 Item Features
- The module electronics supply the connected sensors from the input current path
- Negative switching
- Reverse polarity protection
- 1-wire connection
- Permanently set input filter, 3 ms
1315390000 Standards
RoHS Compliant|ATEX Certified|RINA Compliant|UL File No. E141197|cULus Listed for Hazardous Locations|cULusEX Listed|CE Certified|EAC Certified|IEC 61131-2|ABS Approved|DNV-GL Approved|UL 94 V-0 Flammability RatingSKU #2359825Part Number #1315390000UNSPSC32151602UPC04050118118582
