Brand: Weidmuller

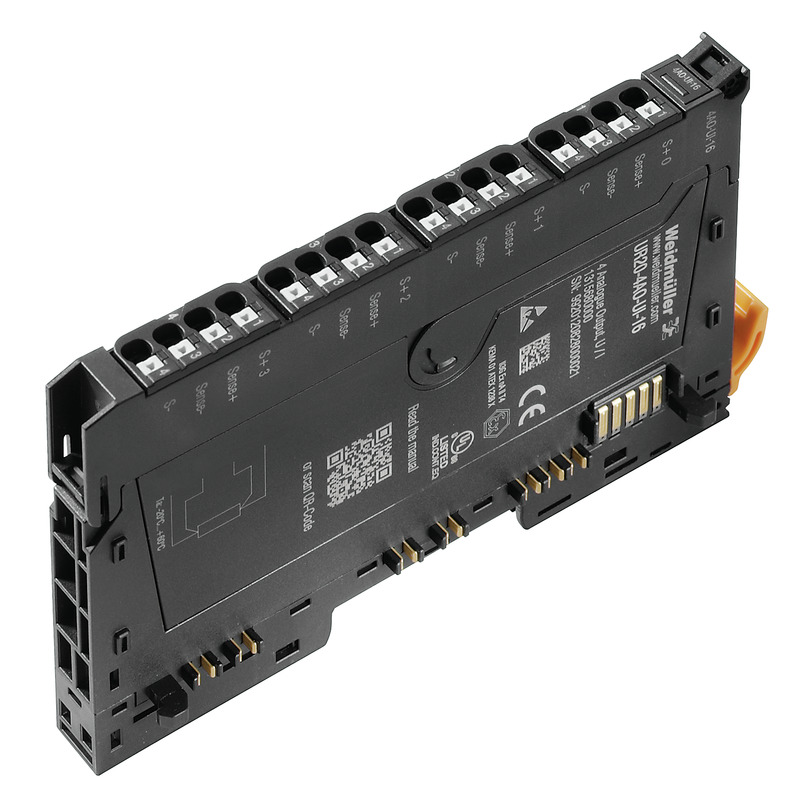

Weidmuller 1315680000 Analog Remote Output Module
Image Disclaimers Message
Brand: Weidmuller
Weidmuller 1315680000 Analog Remote Output Module
Brand: Weidmuller
Weidmuller 1315680000 Analog Remote Output Module
Part #:1315680000
SKU #: 2294380
$317.83/EA
Key Features
Part #:1315680000
SKU #: 2294380
Brand: Weidmuller
Accuracy: +/-0.1% FSR, +/-0.05% FSR
Amperage Rating: 8 mA
Dimensions: 120 mm H x 11.5 mm W x 76 mm D
Temperature Rating (Degrees F): -20 to 60 deg C
Terminal Type: Push-In
$317.83/EA
- The outputs are supplied from the output current path
- Outputs can be parameterized by channel (voltage, current)
- 2 and 4-wire connection
- Replacement values can be set per channel
- Non-reactive
- Short circuit proof
Specifications
Brand: Weidmuller
Accuracy: +/-0.1% FSR, +/-0.05% FSR
Amperage Rating: 8 mA
Dimensions: 120 mm H x 11.5 mm W x 76 mm D
Temperature Rating (Degrees F): -20 to 60 deg C
Terminal Type: Push-In
Type: Analog
Voltage Rating: 24 VDC
Number of outputs: 4
Resolution: 16 bit
UNSPSC: 32151602
UPC: 04050118118803
Weidmuller 1315680000 Analog Remote Output Module
Additional Description: WEID-1315680000 UR20-4AO-UI-16 ANALOGUE OUTPUT MODULE (I/O)
Catalog Description: Analogue output module for transmission of analog signals.
Item Features
Resources
