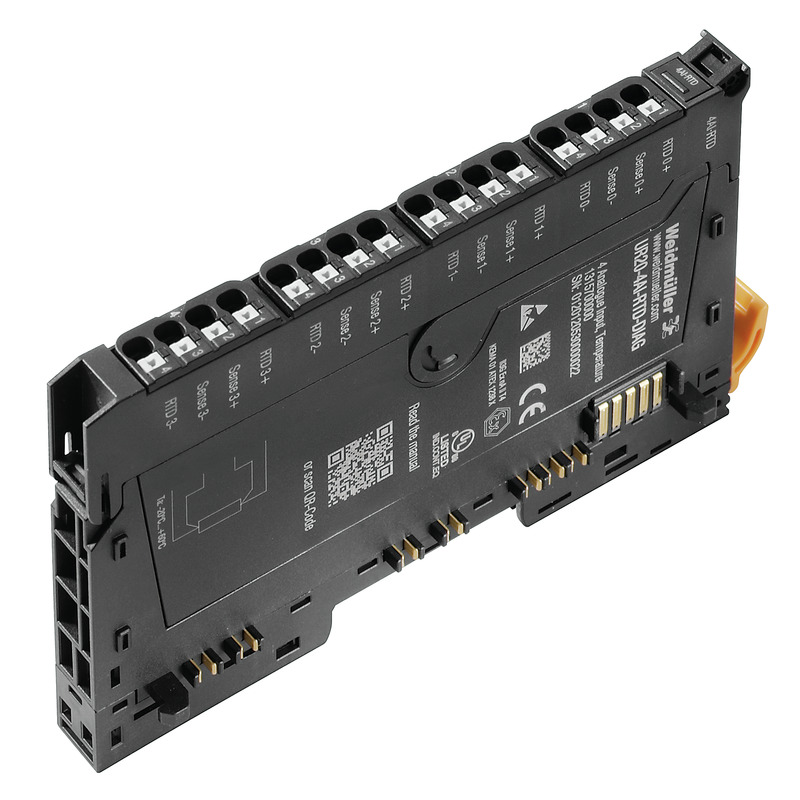

Weidmuller 1315700000 Analog Remote Input Module
Part Number # 1315700000
SKU # 2350016
$385.22 / Each
Weidmuller 1315700000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1315700000 |
| SKU #: | 2350016 |
| Amperage Rating: | 8 mA |
| Dimensions: | 120 mm H x 11.5 mm W x 76 mm D |
| Temperature Rating (Degrees F): | -20 to 60 deg C |
| Terminal Type: | Push-In |
| Type: | Analog |
| Country of origin: | DE |
| Number of inputs: | 4 |
| Resolution: | 16 bit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151602 |
| UPC: | 04050118118872 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$385.22 / Each
Quantity:
Weidmuller 1315700000 Analog Remote Input Module
Brand: Weidmuller
Part Number: 1315700000
Weidmuller Remote Input Module, Analog, 4 Inputs, 36 to 240 ms Conversion Rate, 16 bit Resolution, 0.2% FSR, 0.3% FSR, 0.6% FSR Accuracy, 24 VDC, 8 mA, Push-In Terminal, -20 to 60 deg C, 120 mm H x 11.5 mm W x 76 mm D Dimensions
Additional Description: WEID-1315700000 UR20-4AI-RTD-DIAG ANALOGUE INPUT MODULE (I/O)
Catalog Description: Analogue input module for transmission of analog signals.
1315700000 Application
For 2, 3 and 4 wire RTDs1315700000 Includes
01315700000 Item Features
- The module electronics supply the connected sensors with power from the input current path
- Individual channel diagnosis
- Automatic 50 and 60 Hz suppression
- High accuracy
- For virtually all common sensors
- Temperature measurement via resistor
1315700000 Standards
RoHS Compliant|ATEX Certified|RINA Compliant|UL File No. E141197|cULus Listed for Hazardous Locations|cULusEX Listed|CE Certified|EAC Certified|IEC Certified|ABS Approved|DNV-GL Approved|UL 94 V-0 Flammability RatingSKU #2350016Part Number #1315700000UNSPSC32151602UPC04050118118872
