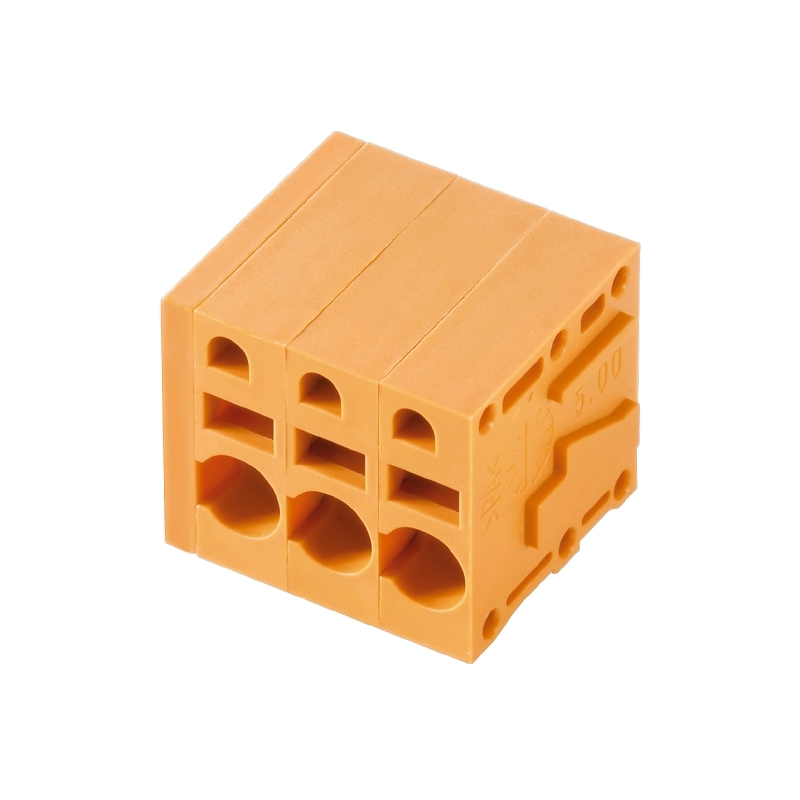

Weidmuller 1331070000 Electrical Underground Bus Connector
Part Number # 1331070000
SKU # 2401945
1331070000
Weidmuller 1331070000 Electrical Underground Bus Connector
Part Number # 1331070000
SKU # 2401945
$93.40 / 20Each
Typical price:$107.46 / Each
Weidmuller 1331070000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1331070000 |
| SKU #: | 2401945 |
| Connector Type: | THT Solder |
| Dimensions: | 18.3 mm H x 68.66 mm W x 15.2 mm D |
| Number of Positions: | 13 |
| Series: | LMF Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Termination Type: | Push-In |
| Type: | Wire Connection |
| Wire Size: | 24 to 12 AWG |
| Contact material: | CuSn |
| Country of origin: | DE |
| Housing material: | PA |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121443 |
| UPC: | 04050118135046 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$93.40 / 20Each
Typical price:$107.46 / Each
Quantity:
- Weidmueller, 1331070000, Plug-In Connector, Wire Connection, Series: LMF Series, 13 Positions, 1 Rows, 5.08 mm Pitch/Row Spacing, 24 to 12 AWG Wire, 300 V AC, THT Solder Connector, Push-In Termination, CuSn Contact, PA Housing Material, -50 to 120 deg C, Orange, 18.3 mm H x 68.66 mm W x 15.2 mm D Dimensions
1331070000 Item Features
- PUSH IN connection system
- LMF with pusher for opening the terminal point
- LMFS without pusher, the terminal point is opened with a screwdriver
- Integrated test point
- 90 deg and 180 deg wire outlet direction
1331070000 Standards
RoHS Compliant|cURus Listed|EAC CertifiedSKU #2401945Part Number #1331070000UNSPSC39121443UPC04050118135046
Image provided may only be a representation of final product and may include optional equipment
