Weidmuller 1331960000 Electrical Underground Bus Connector
Part Number # 1331960000
SKU # 2403337
1331960000
Weidmuller 1331960000 Electrical Underground Bus Connector
Part Number # 1331960000
SKU # 2403337
$93.60 / 130Each
Typical price:$107.51 / Each
Weidmuller 1331960000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1331960000 |
| SKU #: | 2403337 |
| Connector Type: | THT Solder |
| Dimensions: | 18.3 mm H x 12.7 mm W x 15.2 mm D |
| Series: | LMF Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Termination Type: | Push-In |
| Type: | Wire Connection |
| Contact material: | CuSn |
| Housing material: | PA |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121443 |
| UPC: | 04050118135817 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$93.60 / 130Each
Typical price:$107.51 / Each
Quantity:
Weidmuller 1331960000 Electrical Underground Bus Connector
Brand: Weidmuller
Part Number: 1331960000

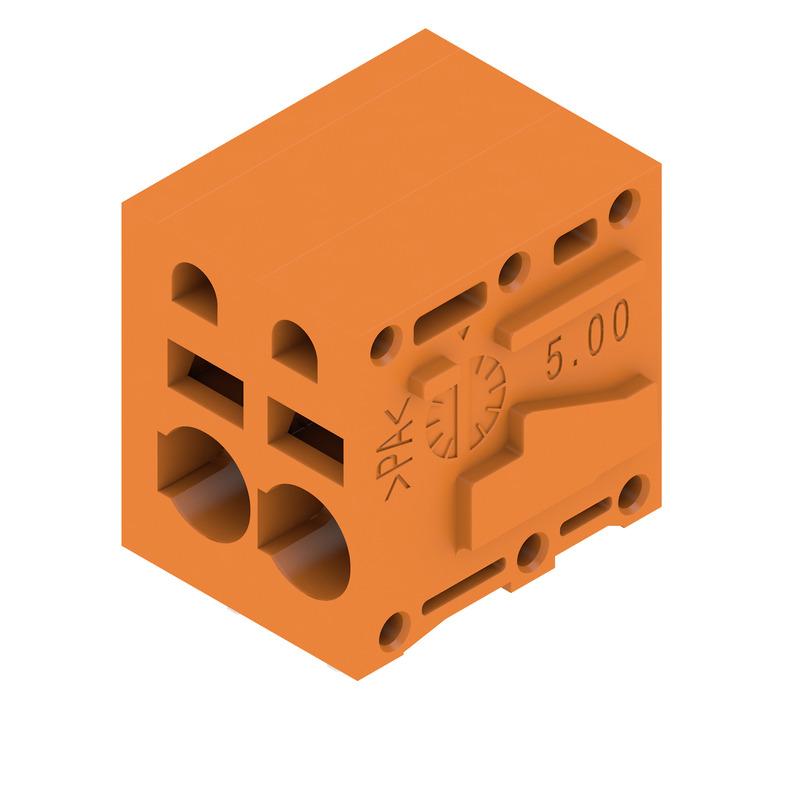

Additional Description: WEID-1331960000 LMFS 5.00/02/90 3.5SN OR BX PCB TERMINAL, 5.00 MM, NUMBER OF POLES: 2, CONDUCTOR OUTLET DIRECTION: 90 , PUSH IN WITHOUT ACTUATOR
Catalog Description: PCB terminal block (print terminal, board terminal) for simple and safe data transmission directly to the PCB.
1331960000 Item Features
- PUSH IN connection system
- LMF with pusher for opening the terminal point
- LMFS without pusher, the terminal point is opened with a screwdriver
- Integrated test point
- 90 deg and 180 deg wire outlet direction
1331960000 Standards
RoHS Compliant|cURus Listed|EAC CertifiedSKU #2403337Part Number #1331960000UNSPSC39121443UPC04050118135817
Image provided may only be a representation of final product and may include optional equipment
