1351600000

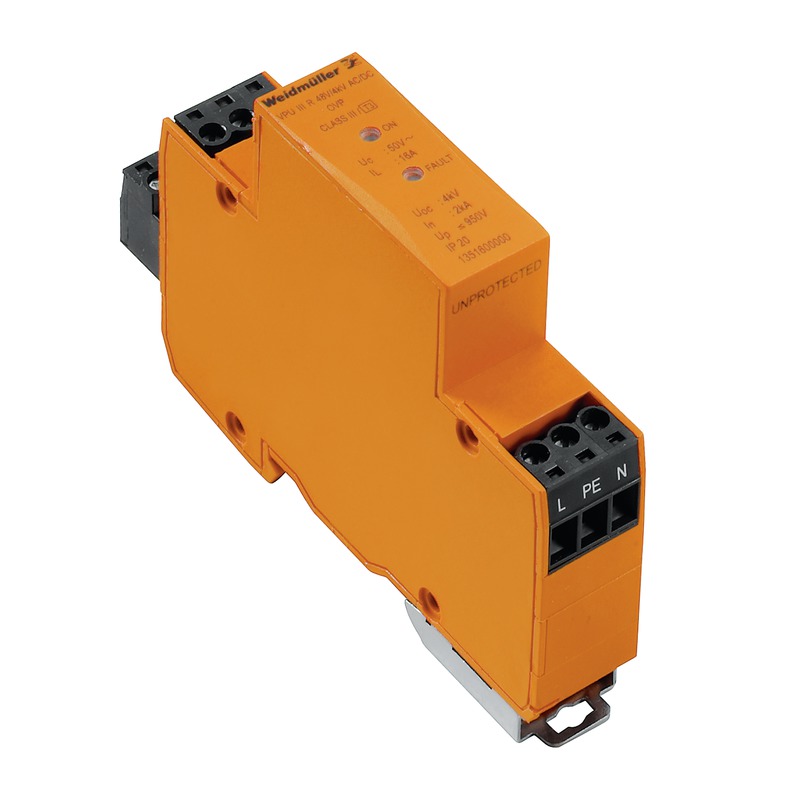

Weidmuller 1351600000 Terminal Block
Part Number # 1351600000
SKU # 2263645
$110.92 / Each
Typical price:$123.21 / Each
Weidmuller 1351600000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1351600000 |
| SKU #: | 2263645 |
| Dimensions: | 102 mm H x 18 mm W x 71.5 mm D |
| Electrical Ratings: | 48/68 V AC/DC |
| Environmental Conditions: | 40 to 70 deg C Operating Temperature, -40 to 70 deg C Storage Temperature, 5 to 95% Relative Humidity |
| Modes of Protection: | L-N/L-PE |
| Response Time: | >100 ns |
| Series: | VPU Series |
| Short Circuit Current Rating (kA): | 1.5 kA |
| Type: | Type III Separable |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121634 |
| UPC: | 04050118158533 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$110.92 / Each
Typical price:$123.21 / Each
Quantity:
- Weidmuller Surge Voltage Arrester, Type III Separable, Series: VPU Series, 48/68 V AC/DC Electrical Rating, 50/60 Hz Frequency, 1 Pole, 1.5 kA Short Circuit, 2 kA Nominal Discharge, Modes of Protection: L-N/L-PE, >100 ns Response, 1 ph, Environmental Conditions: 40 to 70 deg C Operating Temperature, -40 to 70 deg C Storage Temperature, 5 to 95% Relative Humidity, IP20 Enclosure, Orange, 102 mm H x 18 mm W x 71.5 mm D Dimensions
1351600000 Application
Low Voltage Facility Applications1351600000 Item Features
- Compact Type III arrester for AC/DC protection accessories to IEC 61643-11:2012
- Suitable for protecting terminals
- Installed in the vicinity of the equipment to be protected
- Can be used as single port arrester when nominal current is greater than 16 A
1351600000 Standards
CE Certified|EAC Certified|RoHS Compliant|OVE Certified|UL 94 V-0 Flammability RatingSKU #2263645Part Number #1351600000UNSPSC39121634UPC04050118158533
Image provided may only be a representation of final product and may include optional equipment
