1351630000

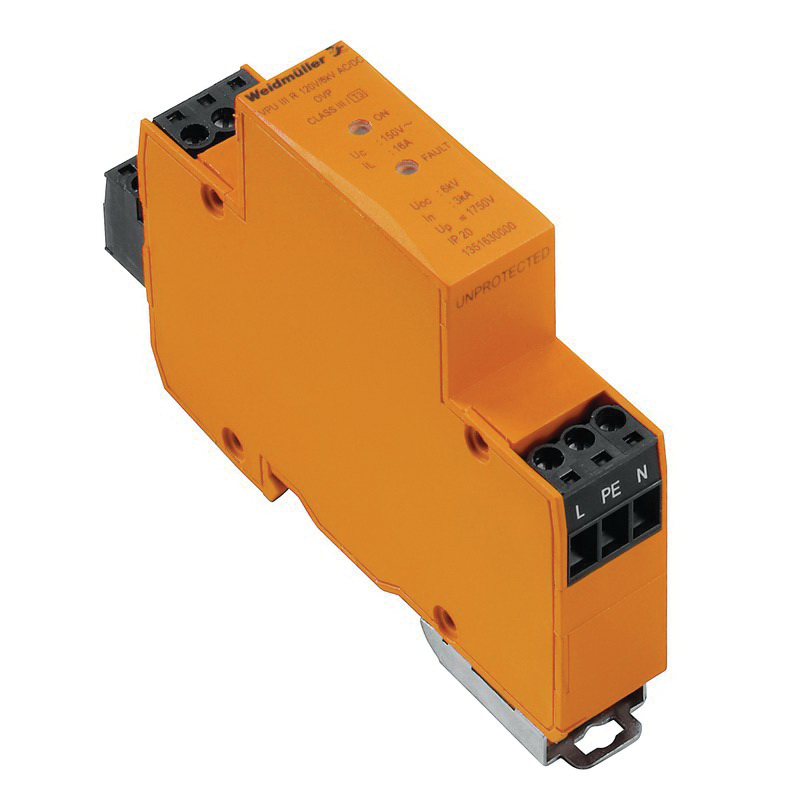

Weidmuller 1351630000 Surge Arrestor
Part Number # 1351630000
SKU # 2396389
$113.76 / Each
Typical price:$126.36 / Each
Weidmuller 1351630000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1351630000 |
| SKU #: | 2396389 |
| Dimensions: | 102 mm H x 18 mm W x 71.5 mm D |
| Electrical Ratings: | 120/150 V AC/DC |
| Environmental Conditions: | 40 to 70 deg C Operating Temperature, -40 to 70 deg C Storage Temperature, 5 to 95% Relative Humidity |
| Modes of Protection: | L-N/L-PE |
| Response Time: | >100 ns |
| Series: | VPU Series |
| Short Circuit Current Rating (kA): | 1.5 kA |
| Type: | Type III Separable |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121634 |
| UPC: | 04050118158519 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$113.76 / Each
Typical price:$126.36 / Each
Quantity:
Weidmuller 1351630000 Surge Arrestor
Brand: Weidmuller
Part Number: 1351630000
Additional Description: WEID-1351630000 VPU III R 120V/6KV AC/DC SURGE VOLTAGE ARRESTER (POWER SUPPLY SYSTEMS), WITH REMOTE CONTACT, TYPE III, LOW VOLTAGE NETWORK: SINGLE-PHASE, AC/DC, 120 V, 150 V
Catalog Description: Device for surge protection in energy engineering and power supply. The device should be installed close to the feed-in of the system to be protected.
1351630000 Application
Low Voltage Facility Applications1351630000 Item Features
- Compact Type III arrester for AC/DC protection accessories to IEC 61643-11:2012
- Suitable for protecting terminals
- Installed in the vicinity of the equipment to be protected
- Can be used as single port arrester when nominal current is greater than 16 A
1351630000 Standards
CE Certified|EAC Certified|RoHS Compliant|OVE Certified|UL 94 V-0 Flammability RatingSKU #2396389Part Number #1351630000UNSPSC39121634UPC04050118158519
Image provided may only be a representation of final product and may include optional equipment
