Brand: Weidmuller

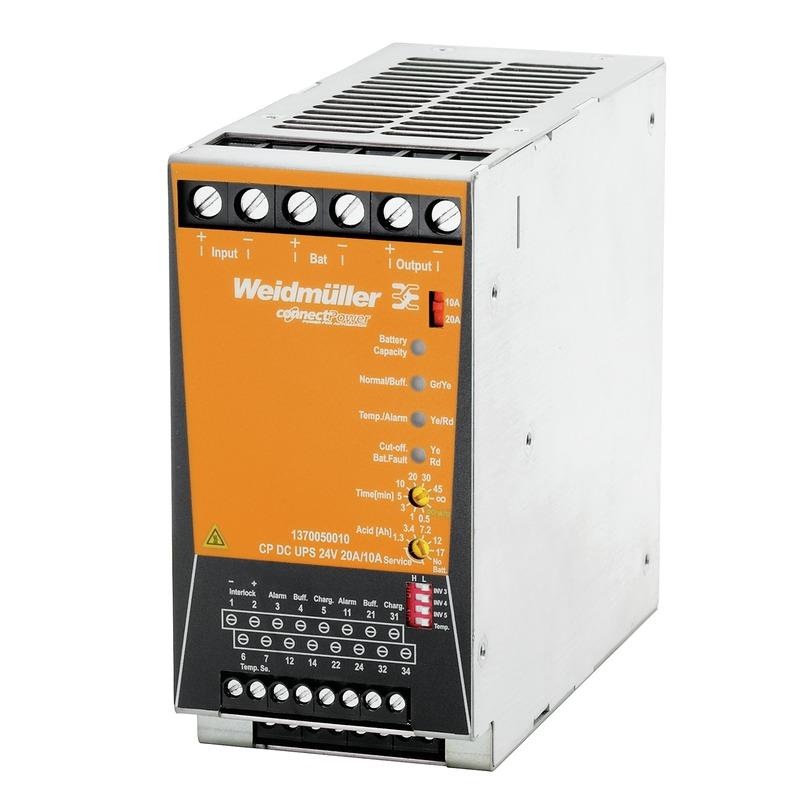

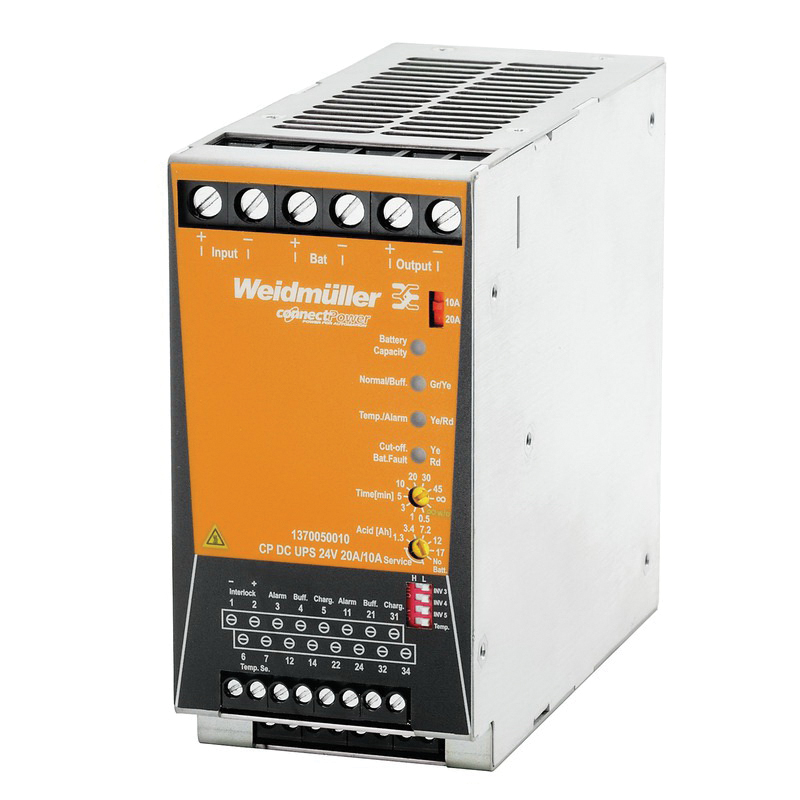

Weidmuller 1370050010 Power Supply Unit
Part Number # 1370050010
SKU # 2295188
Brand: Weidmuller
1370050010
Weidmuller 1370050010 Power Supply Unit
Part Number # 1370050010
SKU # 2295188
$383.56 / Each
Typical price:$441.54 / Each
Weidmuller 1370050010 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1370050010 |
| SKU #: | 2295188 |
| Amperage Rating: | 24/28 A |
| Depth: | 5.905 in |
| Width: | 2.598 in |
| UNSPSC: | 39121004 |
| UPC: | 04050118202335 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$383.56 / Each
Typical price:$441.54 / Each
Quantity:
- Weidmuller UPS Control Unit, 20 to 30 V DC Input, 24 VDC Output, 24/28 A, DIN Rail Mount, Metallic Case, 2.598 in Width, 5.905 in Depth, 5.118 in Height
1370050010 Item Features
- 5 to 95%, no condensation humidity
- -25 to 70 deg C operating temperature, -40 to 85 deg C storage temperature
- 1.3 Ah, 3.4 Ah, 7.2 Ah, 12 Ah, 17 Ah, selectable with rotary switch storage medium
- 0.15 CA charging current, 27, 48 VAC at 20 deg C charging voltage (temperature compensated)
- IU characteristic curve charging feature
- - 48 mV/deg C temperature coefficient
- Inversion of transistor outputs, operation without temperature probe DIP switch
- 20 A, 10 A output current selector switch
- 1.3 Ah, 3.4 Ah, 7.2 Ah, 12 Ah, 17 Ah, no battery, service selector switch battery
- NTC 100 kOhm Temperature probe
- 0.5, 1, 3, 5, 10, 20, 30, 45 minimum without selector switch buffer times
- Max 200 mA (without battery), max 0.5 A (with fully charged battery) DC current consumption
- <=13 A (for 10 A), <=23 A (for 20 A) input current
- Screw connection method
- 24 A at 45 deg C, 20 A at 60 deg C, 15 A at 70 deg C continuous output current at Urated, 24 A for 1 min, ED = 5% leitungs reserve at URated, 0.5 sq-mm flexible/0.6 sq-mm rigid min conductor cross-section, 1.2 to 1.5 Nm tightening torque at output, Three-color LED status indicator
- <50 mVSS at 24 VDC, in residual ripple, breaking spikes
- - 48 mV/deg C temperature coefficient, NTC 100 kOhm temperature probe at output, >120% IN current limiting, >=96% normal mode, battery is being charged, >=98% normal mode, battery is charged, >=98% buffer mode degree of efficiency, 5 to 95%, no condensation humidity
- <10 W power loss, IP20 degree protection, 1.3 Ah, 3.4 Ah, 7.2 Ah, 12 Ah, 17 Ah, selectable with rotary switch storage medium, 32 to 34 VDC protection against reverse voltages from the load, III surge voltage category
- 1 kV input earth/output earth electrical isolation, 2 pollution severity, 0.5 sq-mm flexible/rigid min conductor cross-section, 16 sq-mm rigid max conductor cross-section, 1.2 to 1.5 Nm tightening torque at input, 16 sq-mm flexible/rigid max conductor cross-section
- CP DC UPS 24V 20A/10A type
1370050010 Standards
CE|cULus File No. E258476|EAC|GERMLLOYD File No 61934-14 Certified|RoHS CompliantSKU #2295188Part Number #1370050010UNSPSC39121004UPC04050118202335
Image provided may only be a representation of final product and may include optional equipment
