Brand: Weidmuller

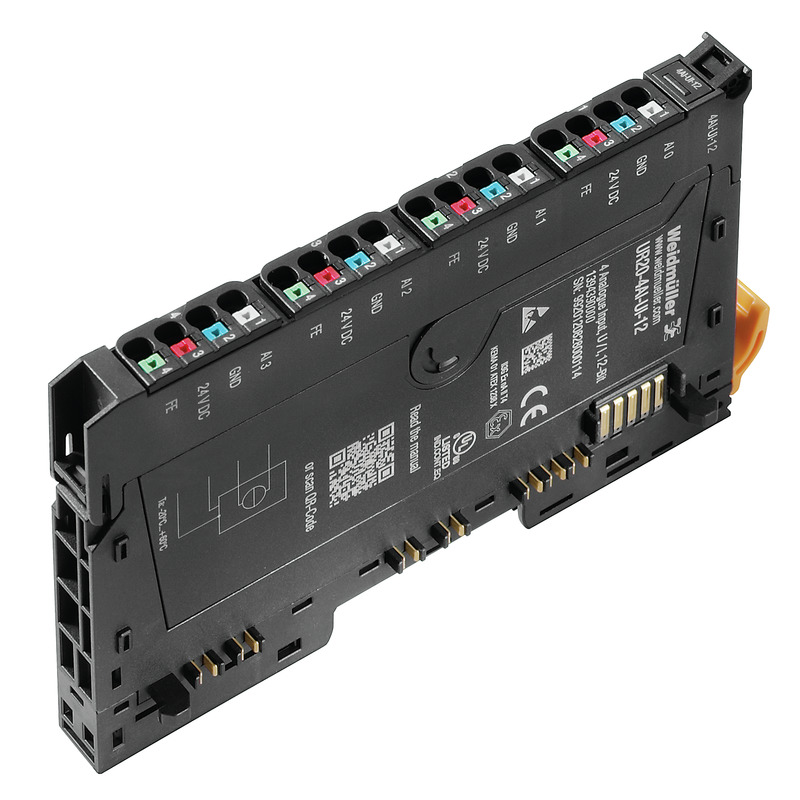

Weidmuller 1394390000 Remote Input Module
Image Disclaimers Message
Brand: Weidmuller
Weidmuller 1394390000 Remote Input Module
Brand: Weidmuller
Weidmuller 1394390000 Remote Input Module
Part #:1394390000
SKU #: 2402082
$223.62/EA
Key Features
Part #:1394390000
SKU #: 2402082
Brand: Weidmuller
Accuracy: 0.1% FSR
Amperage Rating: 8 mA
Dimensions: 120 mm H x 11.5 mm W x 76 mm D
Temperature Rating (Degrees F): -20 to 60 deg C
Terminal Type: Push-In
$223.62/EA
- The module electronics supply the connected sensors with power from the input current path
- Parameterisable inputs (voltage, current)
- 2-wire, 3-wire and 3-wire+FE connection
Specifications
Brand: Weidmuller
Accuracy: 0.1% FSR
Amperage Rating: 8 mA
Dimensions: 120 mm H x 11.5 mm W x 76 mm D
Temperature Rating (Degrees F): -20 to 60 deg C
Terminal Type: Push-In
Type: Analog
Voltage Rating: 24 VDC
Number of inputs: 4
Resolution: 12 bit
UNSPSC: 32151602
UPC: 04050118195200
Weidmuller 1394390000 Remote Input Module
Weidmuller Remote Input Module, Analog, 4 Inputs, 1 ms Conversion Rate, 12 bit Resolution, 0.1% FSR Accuracy, 24 VDC, 8 mA, Push-In Terminal, -20 to 60 deg C, 120 mm H x 11.5 mm W x 76 mm D Dimensions
Additional Description: WEID-1394390000 UR20-4AI-UI-12 ANALOGUE INPUT MODULE (I/O)
Catalog Description: Analogue input module for transmission of analog signals.
