1429050000

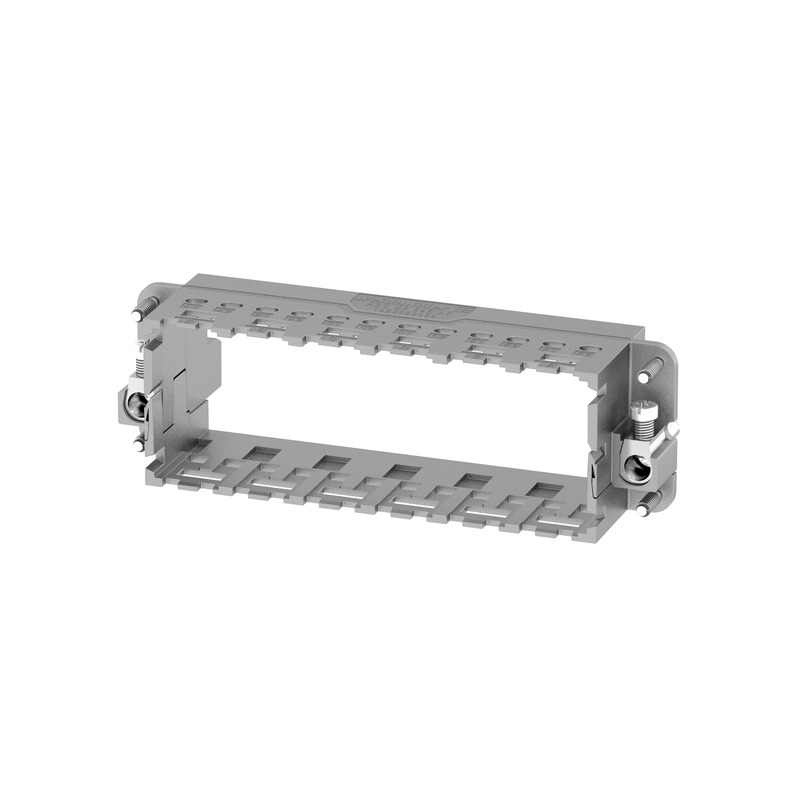

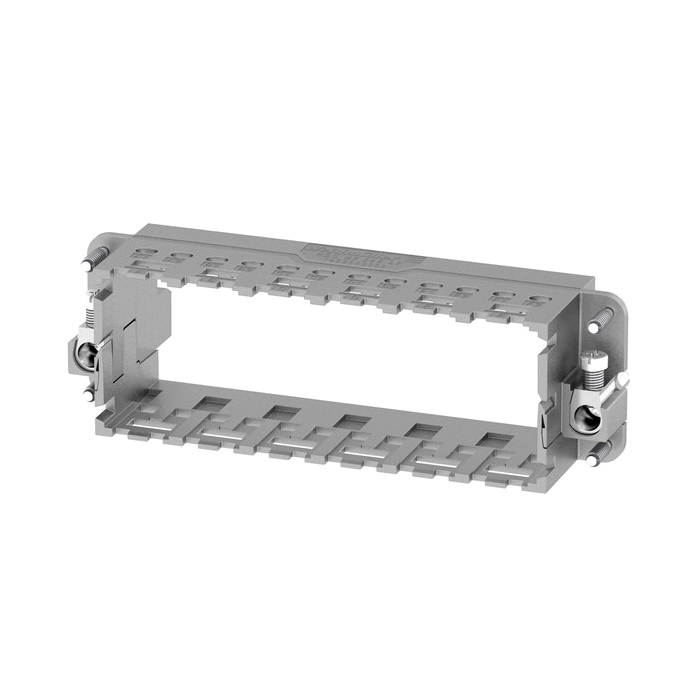

Weidmuller 1429050000 ModuPlug Female/Male Heavy Duty Mounting Frame
Part Number # 1429050000
SKU # 2374468
Weidmuller 1429050000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1429050000 |
| SKU #: | 2374468 |
| Dimensions: | 36.4 mm H x 111 mm W x 37.35 mm D |
| Series: | ModuPlugÂ, ModuPlug® |
| Size: | SZ 8 |
| Specifications: | Screw Connection, 1.2 N-m Tightening Torque, = 500 Plugging Cycles, 6 Slots |
| Suitable For Use With: | RockStar HighPower Modular System and Industrial Connector, RockStar® HighPower Modular System and Industrial Connector |
| Temperature Rating (Degrees F): | -40 to 125 deg C |
| Type: | Female/Male Heavy Duty |
| Color: | Silver |
| Country of origin: | RO |
| Material: | Die Cast Zinc |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04050118233285 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1429050000 ModuPlug Female/Male Heavy Duty Mounting Frame
Brand: Weidmuller
Part Number: 1429050000
Weidmuller Mounting Frame, Female/Male Heavy Duty, Series: ModuPlug , SZ 8 Size, For Use With: RockStar HighPower Modular System and Industrial Connector, Specifications: Screw Connection, 1.2 N-m Tightening Torque, = 500 Plugging Cycles, 6 Slots, -40 to 125 deg C, Die Cast Zinc, Silver, 36.4 mm H x 111 mm W x 37.35 mm D Dimensions
Additional Description: WEID-1429050000 HDC MF 24B AF FRAME FOR INDUSTRIAL CONNECTOR, SERIES: MODUPLUG, SIZE: 8, NUMBER OF SLOTS: 6, DIECAST ZINC
Catalog Description: Push-in frame made of zinc diecast to protect the modules.
1429050000 Includes
01429050000 Item Features
- The innovative sliding frame has two defined lock-in positions for opening and closing
- This enables simple and tool-free module assembly
- https://youtu.be/hPYAz0-4B9w
1429050000 Standards
RoHS Compliant|UL File No. E92202|cULus RecognizedSKU #2374468Part Number #1429050000UNSPSC32151901UPC04050118233285
