Brand: Weidmuller

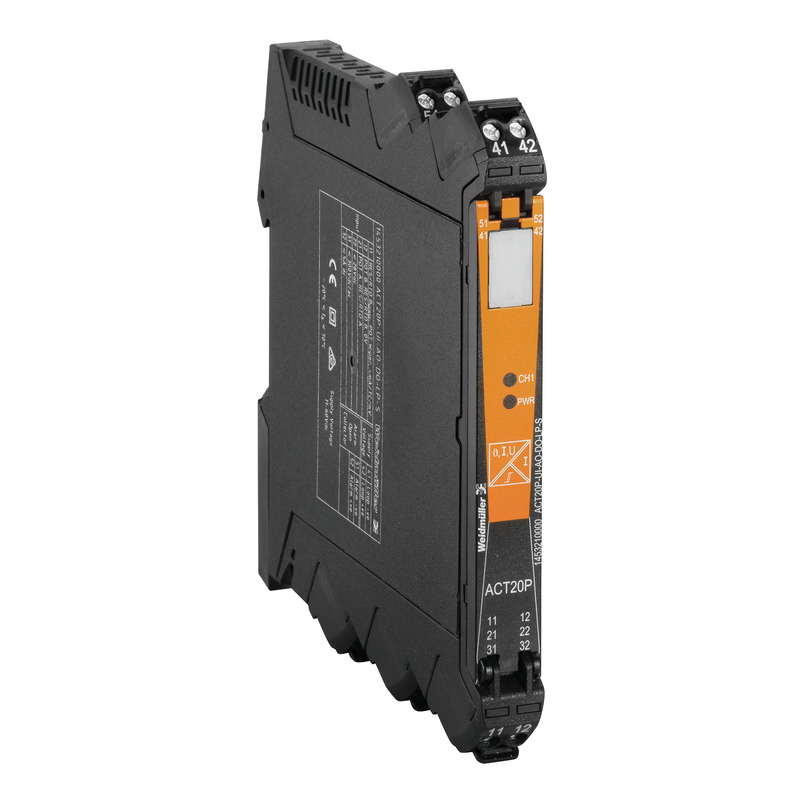

Weidmuller 1453210000 Universal Signal Inverter, 0 to 300 VAC, +/-300 VDC Input, Digital Output
Image Disclaimers Message
Brand: Weidmuller
Weidmuller 1453210000 Universal Signal Inverter, 0 to 300 VAC, +/-300 VDC Input, Digital Output
Brand: Weidmuller
Weidmuller 1453210000 Universal Signal Inverter, 0 to 300 VAC, +/-300 VDC Input, Digital Output
Part #:1453210000
SKU #: 2372198
$407.55/EA
Key Features
Part #:1453210000
SKU #: 2372198
Brand: Weidmuller
Accuracy: <0.1 %
Dimensions: 119.2 mm H x 12.5 mm W x 113.6 mm D
Input Voltage: 0 to 300 VAC, +/-300 VDC
Response Time: 450 ms
Specifications: <0.02 deg C Temperature Coefficient, 2-Way Isolator
$407.55/EA
- Precise and highly functional signal converters
- Release levers simplify handling
- Configuration and monitoring are performed via FDT/DTM software, WI-manager
- The active or passive signal inputs for RTD, TC, potentiometer, mV, V, mA and A are completely electrically isolated
- The TC signal input has internal cold junction compensation
- Alarm output (for example for limit monitoring, sensor error detection and more)
- Output current loop powered
Specifications
Brand: Weidmuller
Accuracy: <0.1 %
Dimensions: 119.2 mm H x 12.5 mm W x 113.6 mm D
Input Voltage: 0 to 300 VAC, +/-300 VDC
Response Time: 450 ms
Specifications: <0.02 deg C Temperature Coefficient, 2-Way Isolator
Temperature Rating (Degrees F): -20 to 70 deg C
Type: Universal
Connection type: Screw
Input current: +/-5 A
Mounting type: TS35 Rail
Output current: 4 to 20 mA
Output type: Digital
UNSPSC: 39121020
UPC: 04050118259605
Weidmuller 1453210000 Universal Signal Inverter, 0 to 300 VAC, +/-300 VDC Input, Digital Output
Additional Description: WEID-1453210000 ACT20P-UI-AO-DO-LP SIGNAL CONVERTER/INSULATOR, INPUT : UNIVERSAL U, I, R,?, OUTPUT : 4-20 MA, (LOOP POWERED), TRANSISTOR (ALARM)
