1476050000

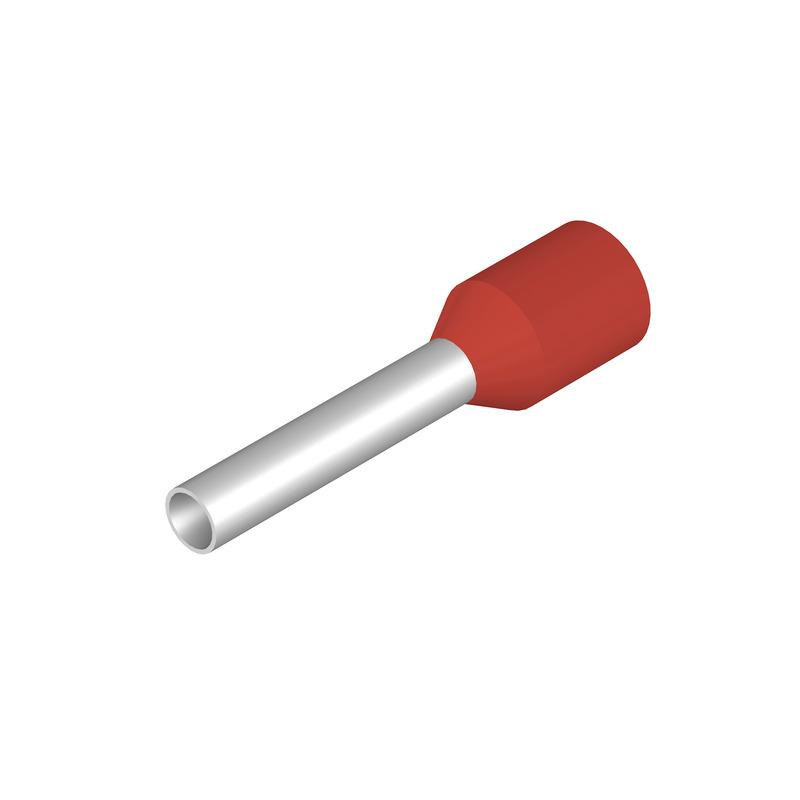

Weidmuller 1476050000 Ferrule
Part Number # 1476050000
SKU # 2403388
$700.00 / 5000Each
Typical price:$780.00 / Each
Weidmuller 1476050000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1476050000 |
| SKU #: | 2403388 |
| Barrel Size: | 3.5 mm |
| Barrel Type: | Funnel Entry |
| Conductor Size: | 16 AWG |
| Conductor Type: | E-Cu |
| Finish: | Electro Galvanized |
| Specifications: | 1.5 sq-mm Conductor Cross-Section, 10 mm Contact Surface Length (L2), 0.15 mm Metal Sleeve Thickness (S1), 12 mm Stripping Length, 1.7 mm Contact Surface Diameter (D1)0.25 mm Plastic Collar Thickness (S2) |
| Temperature Rating (Degrees F): | 105 deg C |
| Type: | Standard |
| Country of origin: | DE |
| Length: | 16 mm |
| Material: | Polypropylene |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163102 |
| UPC: | 04050118282948 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$700.00 / 5000Each
Typical price:$780.00 / Each
Quantity:
- Weidmuller, 1476050000, Wire-End Ferrule, Standard, E-Cu Conductor, 16 AWG Conductor, 16 mm Length, Funnel Entry Barrel, 3.5 mm Barrel, Specifications: 1.5 sq-mm Conductor Cross-Section, 10 mm Contact Surface Length (L2), 0.15 mm Metal Sleeve Thickness (S1), 12 mm Stripping Length, 1.7 mm Contact Surface Diameter (D1)0.25 mm Plastic Collar Thickness (S2), 105 deg C, Polypropylene, Electro Galvanized, Red
1476050000 Standards
RoHS Compliant|UR ListedSKU #2403388Part Number #1476050000UNSPSC31163102UPC04050118282948
Image provided may only be a representation of final product and may include optional equipment
