Part Number # 1478180000
SKU # 2310654
Image Disclaimers Message
1478180000

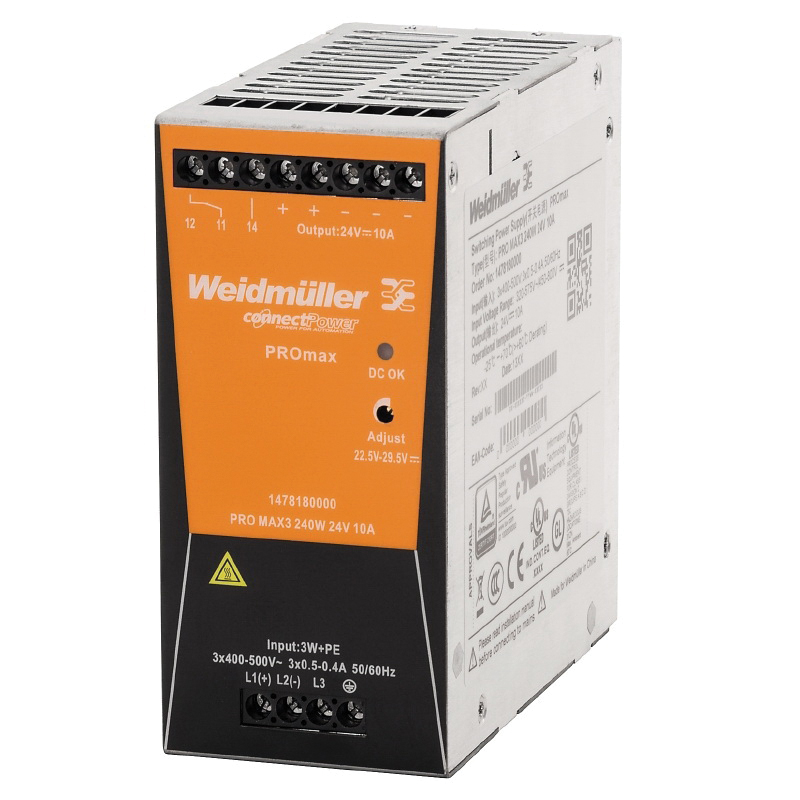

Weidmuller 1478180000 Power Supply Unit
Part Number # 1478180000
SKU # 2310654
$236.90 / Each
Typical price:$266.50 / Each
Weidmuller 1478180000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1478180000 |
| SKU #: | 2310654 |
| Amperage Rating: | 10 A |
| Frequency Rating: | 45 to 65 Hz |
| Input Voltage: | 3 x 400 to 3 x 500 VAC |
| Series: | PROmax |
| Type: | 3-Phase Switch Mode |
| Country of origin: | CN |
| Depth: | 125 mm |
| Height: | 130 mm |
| Mounting type: | DIN Rail |
| Output voltage: | 24 VDC |
| Width: | 60 mm |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121004 |
| UPC: | 04050118286120 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$236.90 / Each
Typical price:$266.50 / Each
Quantity:
Weidmuller 1478180000 Power Supply Unit
Brand: Weidmuller
Part Number: 1478180000
Additional Description: WEID-1478180000 PRO MAX3 240W 24V 10A POWER SUPPLY, 240 W, 10 A @ 60 C 600VAC INPUTS
Catalog Description: Power supply unit for providing DC voltage.
1478180000 Application
For use in demanding applications where varying loads or high temperatures exist process, machinery, energy and transportations1478180000 Item Features
- Small housing 32 to 140 mm W
- MTBF >500000 hr
- Wide temperature range -25 to 70 deg C, startup at -40 deg C
- External monitoring with relay contact
- Capable of parallel and series output connections
- Bi-color LED for easy status indication
- Shock and vibration-resistant
- Powerful output surge capability up to 300%
1478180000 Standards
GERMLLOYD TAA00000TT|cULus File No. E258476|cULus Ex File No. E470829|cULus File No. E255651|cULusEX Listed|CE Certified|EAC Certified|DNV-GL Approved|TUV Approved|Type Approved|RoHS Compliant|REACH 7439-92-1|Class 1 Division 2SKU #2310654Part Number #1478180000UNSPSC39121004UPC04050118286120
