1478220000
Weidmuller 1478220000 Power Supply Units
Part Number # 1478220000
SKU # 2423517
$93.39 / Each
Typical price:$107.51 / Each
Weidmuller 1478220000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1478220000 |
| SKU #: | 2423517 |
| Amperage Rating: | 6 A |
| Frequency Rating: | 45 to 65 Hz |
| Input Voltage: | 100 to 240 V AC |
| Series: | PROmax |
| Type: | 1-Phase Switch Mode |
| Country of origin: | TH |
| Depth: | 125 mm |
| Height: | 130 mm |
| Output voltage: | 12 V DC |
| Width: | 32 mm |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121004 |
| UPC: | 04050118285970 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$93.39 / Each
Typical price:$107.51 / Each
Quantity:
- Weidmuller Power Supply Unit, 1-Phase Switch Mode, Series: PROmax, 100 to 240 V AC Input, 12 VDC Output, 72 W Power, 6 A, 45 to 65 Hz Frequency, DIN Rail Mounting, 32 mm Width, 125 mm Depth, 130 mm Height
1478220000 Application
For use in demanding applications where varying loads or high temperatures exist process, machinery, energy and transportations1478220000 Item Features
- Small housing 32 to 140 mm W
- MTBF >500000 hr
- Wide temperature range -25 to 70 deg C, startup at -40 deg C
- External monitoring with relay contact
- Capable of parallel and series output connections
- Bi-color LED for easy status indication
- Shock and vibration-resistant
- Powerful output surge capability up to 300%
1478220000 Standards
GERMLLOYD TAA00000TT|cULus File No. E258476|cULus Ex File No. E470829|cULus File No. E255651|cULusEX Listed|CE Certified|EAC Certified|DNV-GL Approved|TUV Approved|Type Approved|RoHS Compliant|REACH 7439-92-1|Class 1 Division 2SKU #2423517Part Number #1478220000UNSPSC39121004UPC04050118285970

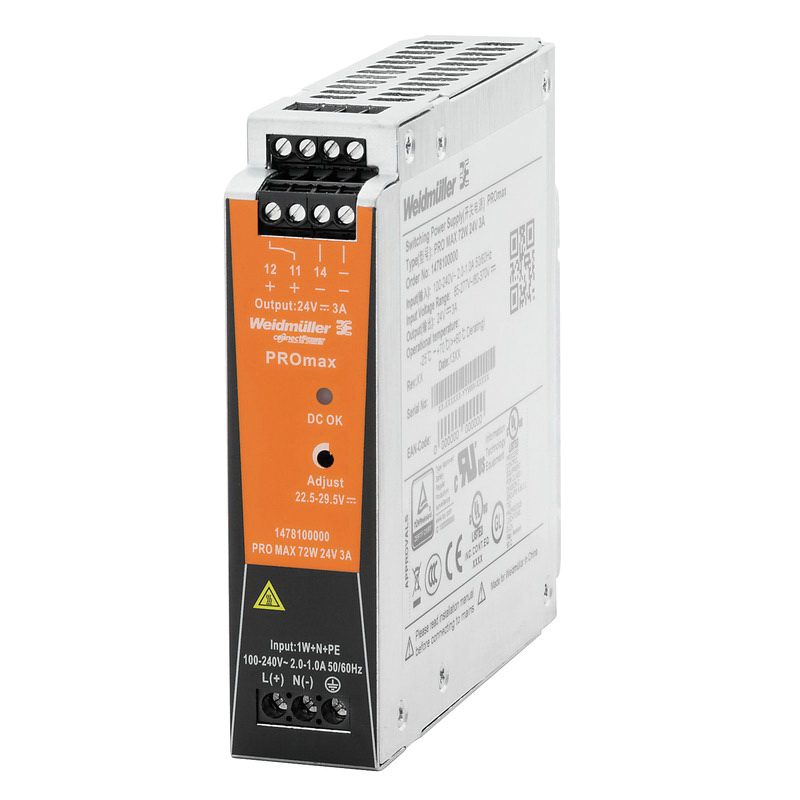

Image provided may only be a representation of final product and may include optional equipment
