1499510000
Weidmuller 1499510000 Terminal Block
Part Number # 1499510000
SKU # 2168429
$547.20 / 180Each
Typical price:$629.82 / Each
Weidmuller 1499510000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1499510000 |
| SKU #: | 2168429 |
| Connector Type: | Female Plug |
| Dimensions: | 12.2 mm H x 10.16 mm W x 31.8 mm D |
| Number of Positions: | 2 |
| Series: | BL/SL 5.08 |
| Temperature Rating (Degrees F): | -50 to 100 deg C |
| Termination Type: | Top |
| Type: | High Current Wire Connection |
| Wire Size: | 26 to 14 AWG |
| Contact material: | CuSn |
| Country of origin: | DE |
| Housing material: | PBT |
| Insulation resistance: | >=10^8 Ohm |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163101 |
| UPC: | 04008190861704 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$547.20 / 180Each
Typical price:$629.82 / Each
Quantity:
- Weidmuller OMNIMATE Signal PCB Plug-In Connector, High Current Wire Connection, Series: BL/SL 5.08, 2 Positions, 1 Rows, 5.08 mm Pitch/Row Spacing, 26 to 14 AWG Wire, 300/400 V, Female Plug Connector, Top Termination, CuSn Contact, >=10^8 Ohm Insulation Resistance, PBT Housing Material, -50 to 100 deg C, Black, 12.2 mm H x 10.16 mm W x 31.8 mm D Dimensions
1499510000 Item Features
- Female plugs with TOP screw connection system for connecting wires with straight 180 deg outlet direction
- The female connectors provide space for labeling and can be coded
- 400 V IEC, 300 V UL
1499510000 Standards
RoHS Compliant|IEC 60664-1, 61984|CSA No. 200039-1121690|UL 1059|cULus No. E60693 Recognized|UL 94 V-0 Flammability Rating|EAC CertifiedSKU #2168429Part Number #1499510000UNSPSC31163101UPC04008190861704

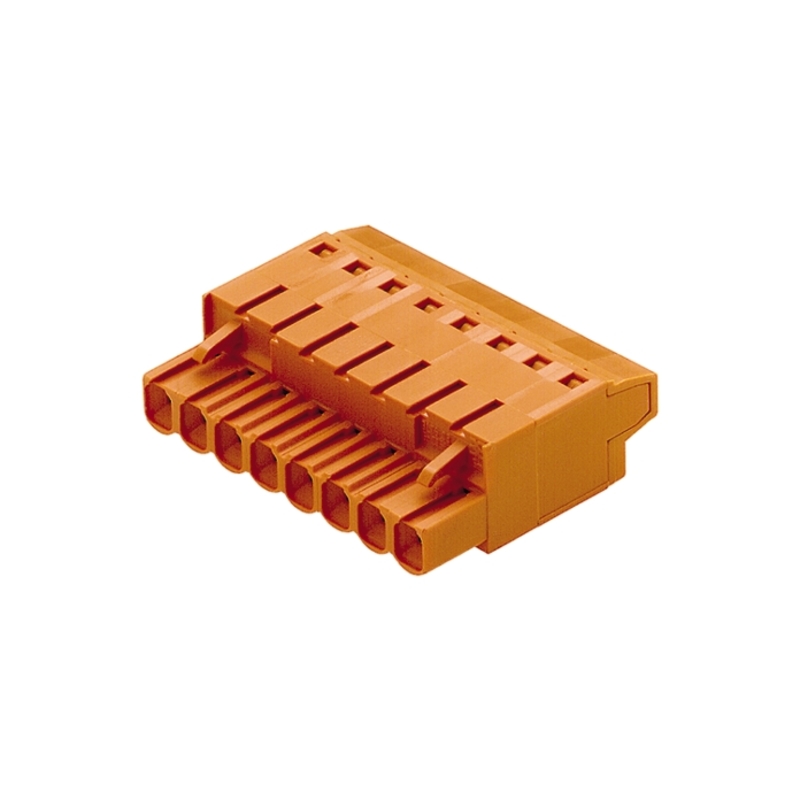

Image provided may only be a representation of final product and may include optional equipment
