Part Number # 1505660000
SKU # 2397413
Image Disclaimers Message
Brand: Weidmuller
1505660000

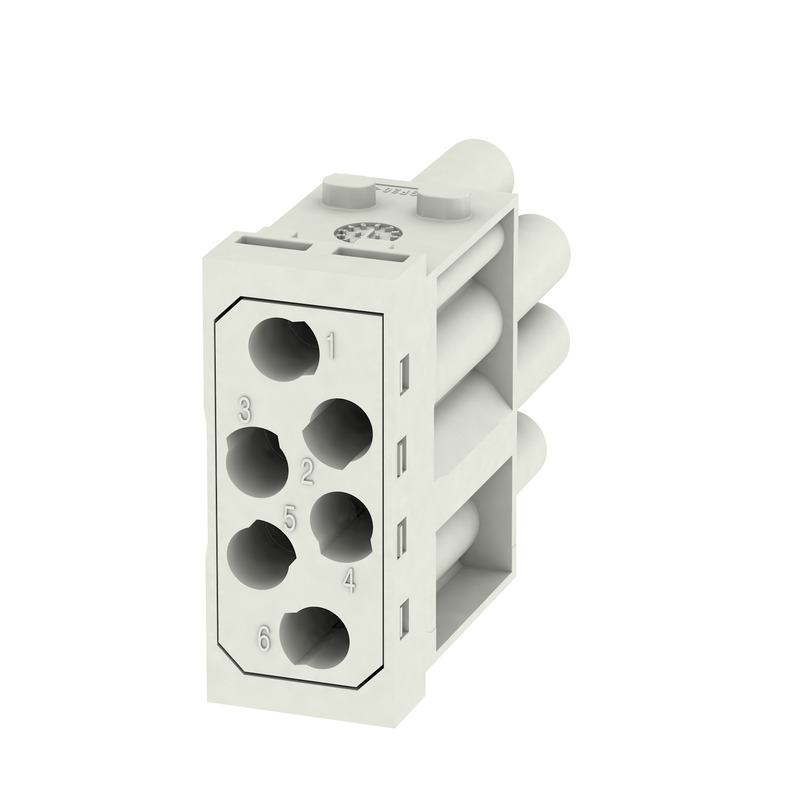

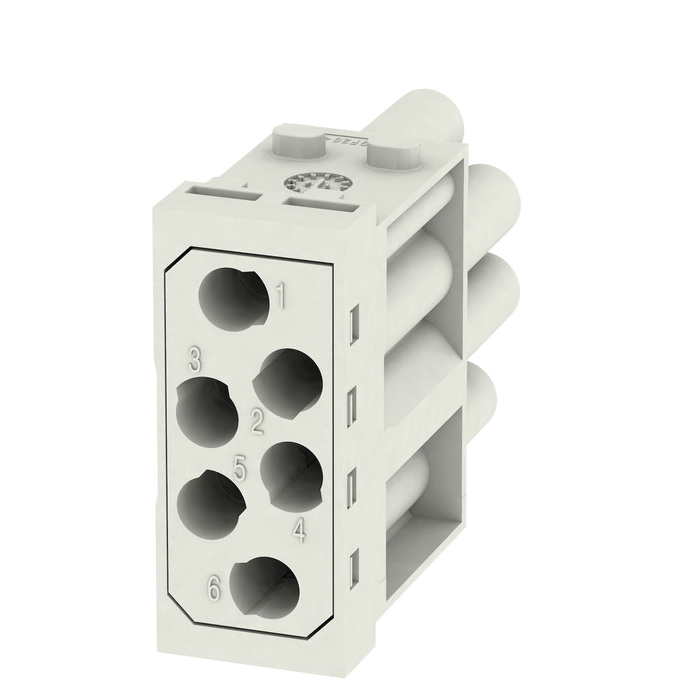

Weidmuller 1505660000 Rockstar Female Module Insert
Part Number # 1505660000
SKU # 2397413
$7.55 / Each
Typical price:$8.49 / Each
Weidmuller 1505660000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1505660000 |
| SKU #: | 2397413 |
| Dimensions: | 42.2 mm H x 14.5 mm W x 34 mm D |
| Series: | HDC |
| Specifications: | 7.5 mm L Stripping |
| Suitable For Use With: | ModuPlug Modular System, ModuPlug® Modular System |
| Temperature Rating (Degrees F): | -40 to 125 deg C |
| Type: | 6-Pole |
| Wire Size: | 20 to 12 AWG |
| Connection type: | Crimp |
| Country of origin: | CN |
| Material: | Glass Fiber Reinforced/Polyamide |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04050118314106 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$7.55 / Each
Typical price:$8.49 / Each
Quantity:
Weidmuller 1505660000 Rockstar Female Module Insert
Brand: Weidmuller
Part Number: 1505660000
Weidmuller RockStar Female Module Insert, 6-Pole, Series: HDC, 20 to 12 AWG Wire, Crimp, For Use With: ModuPlug Modular System, -40 to 125 deg C, 7.5 mm L Stripping, Glass Fiber Reinforced/Polyamide, 42.2 mm H x 14.5 mm W x 34 mm D
Additional Description: WEID-1505660000 HDC MHE 6P FC MODULE INSERT FOR INDUSTRIAL CONNECTOR, SERIES: MODUPLUG, CRIMP CONNECTION, NUMBER OF POLES: 6
Catalog Description: Module to transmit data.
1505660000 Application
For industrial connectors1505660000 Includes
01505660000 Item Features
- The four module sizes make for individual plug solutions that save a huge amount of space
- The smaller pitch translates into an optimized design too
1505660000 Standards
RoHS Compliant|cULus Recognized|UL 94 V-0 Flammability RatingSKU #2397413Part Number #1505660000UNSPSC32151901UPC04050118314106
