Weidmuller 1505890000 Terminal Block
Part Number # 1505890000
SKU # 2365184
$237.64 / Each
Typical price:$249.22 / Each
Weidmuller 1505890000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1505890000 |
| SKU #: | 2365184 |
| Suitable For Use With: | 2599430000, 2599440000 and 1140490000 Printer |
| Temperature Rating (Degrees F): | -55 to 135, -55 to 135 deg C |
| Type: | Endless |
| Wire Size: | 4.2 to 12.7, 4.2 to 12.7 mm |
| Color: | White |
| Country of origin: | PL |
| Length: | 30000, 30000 mm |
| Material: | Polyolefin |
| Width: | 20.9, 20.9 mm |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118314359 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$237.64 / Each
Typical price:$249.22 / Each
Quantity:

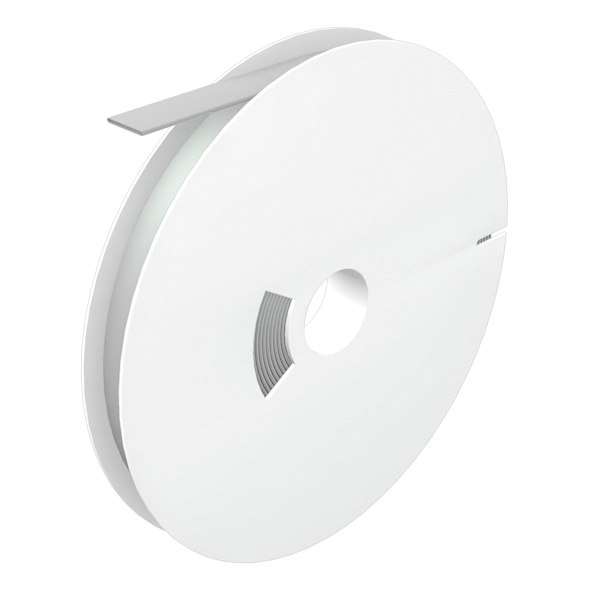

- Weidmuller TwinMark Heat Shrinkable Sleeve, Endless, 30000 mm Length, 20.9 mm Width, 4.2 to 12.7 mm Wire, White, Polyolefin, -55 to 135 deg C, For Use With: 2599430000, 2599440000 and 1140490000 Printer
1505890000 Specifications
- The marker is easily supplied on to the conductor and then simply sits there firmly and securely
1505890000 Application
Plant Manufacture, Energy, Device Manufacturer and Machinery Applications1505890000 Item Features
- The marker is easily supplied on to the conductor and then simply sits there firmly and securely
- An optimum fit is achieved with a 2 to 1 shrink rate
- The large range covers conductor diameters from 1.2 to 25.4 mm
- Can use software to set the required length of the marker
- The tube is perforated by the printer at the required position to allow easy separation
- Due to the oval cross-section, only a slight lateral pressure is required to slip the tube easily onto the conductor
1505890000 Standards
RoHS Compliant|UL File No. E366310|UL 224|CSA File No. C22.22|SAE AS 81531 4.6.2|MIL-STD 202G Method 215K|EN ISO 4589-2|cULus RecognizedSKU #2365184Part Number #1505890000UNSPSC39121410UPC04050118314359
