1510440000
Weidmuller 1510440000 Amplifier
Part Number # 1510440000
SKU # 2337719
$358.56 / Each
Weidmuller 1510440000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1510440000 |
| SKU #: | 2337719 |
| Response Time: | <=300/<=60 ms |
| Specifications: | 12 to 26 AWG Wire, 16.8 to 31.2 V Supply |
| Input current: | 0 to 40/50/60 A |
| Output current: | 0 to 20/4 to 20/-20 to 20 mA |
| Output voltage: | 0 to 10/2 to 10/0 to 5/1 to 5/-5 to 5/-10 to 10 V |
| UNSPSC: | 39121020 |
| UPC: | 04050118319620 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$358.56 / Each
Quantity:
- Weidmuller Current Measuring Transducer, Relay Output, 0 to 10/2 to 10/0 to 5/1 to 5/-5 to 5/-10 to 10 V Output, 0 to 40/50/60 A Input Current, 0 to 20/4 to 20/-20 to 20 mA Output Current, 2.2 W Power, Screw Connection, TS35 Rail Mounting, -25 to 60 deg C, <=300/<=60 ms Response, <0.75% FSR, <1.5% FSR Accuracy, Specifications: 12 to 26 AWG Wire, 16.8 to 31.2 V Supply, 117.2 mm H x 22.5 mm W x 113.6 mm D Dimensions
1510440000 Item Features
- Precise and highly functional signal converters
- Release levers simplify handling
- Real effective value measurement (True RMS) or arithmetic averaging (AA) measurement and contactless through hole technology
- Limit value monitoring for overcurrent or undercurrent
- Relay output by means of the open circuit/closed circuit principle
- Adjustable trigger delay for filtering current peaks
- Operational status and error display on a front panel LED and output signaling
- Galvanic 4-way insulation for secure isolation
1510440000 Standards
RoHS Compliant|UL/cULus File No. E141197 Recognized|NE43/NE44/NE107|IEC/EN 61010-2-201|EAC Certified|DNV-GL ApprovedSKU #2337719Part Number #1510440000UNSPSC39121020UPC04050118319620

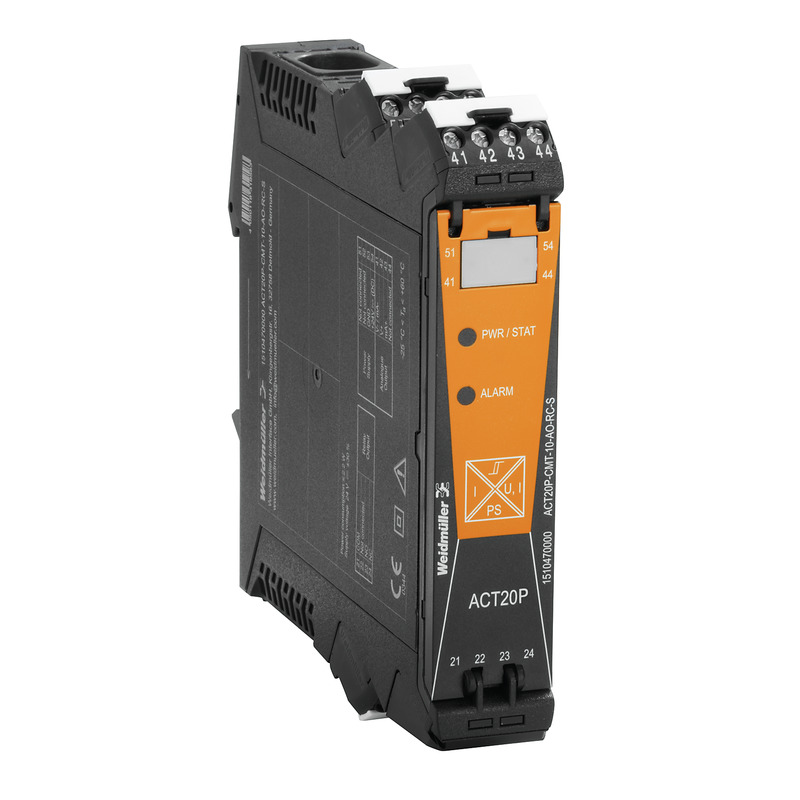

Image provided may only be a representation of final product and may include optional equipment
