Part Number # 1521820000
SKU # 2374930
Image Disclaimers Message
1521820000

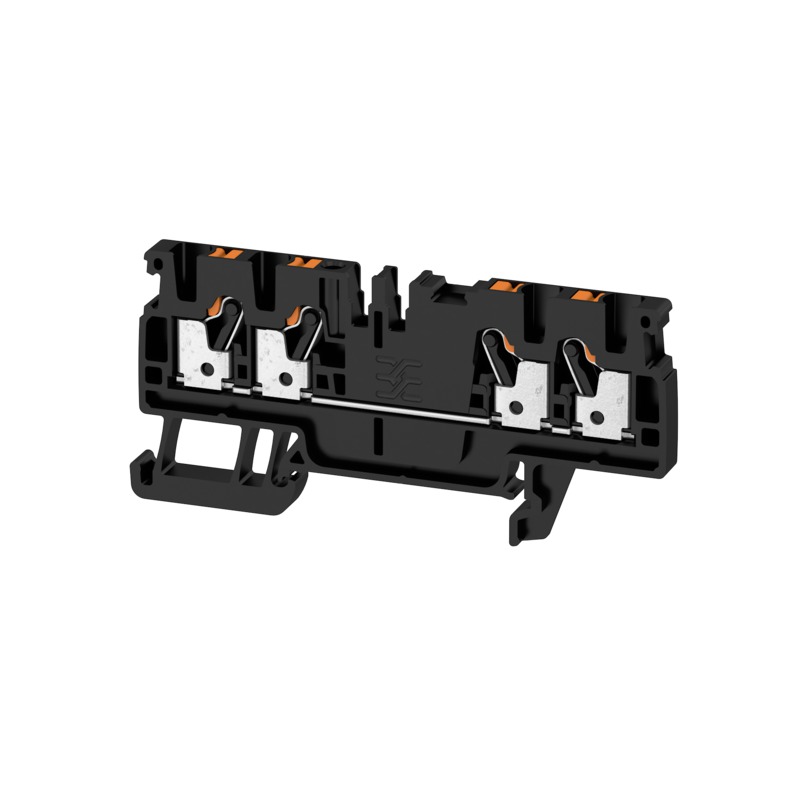

Weidmuller 1521820000 Electrical Terminal
Part Number # 1521820000
SKU # 2374930
$185.00 / 100Each
Typical price:$200.40 / Each
Weidmuller 1521820000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1521820000 |
| SKU #: | 2374930 |
| Amperage Rating: | 24 A |
| Dimensions: | 77.5 mm H x 5.1 mm W x 36.5 mm D |
| Series: | A Series |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Type: | Feed-Through |
| Wire Size: | 2.5 sq-mm |
| Color: | Black |
| Connection type: | Push-In |
| Country of origin: | DE |
| Material: | Wemid |
| Mounting type: | Snap-On |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118328257 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$185.00 / 100Each
Typical price:$200.40 / Each
Quantity:
Weidmuller 1521820000 Electrical Terminal
Brand: Weidmuller
Part Number: 1521820000
Additional Description: WEID-1521820000 A4C 2.5 BK FEED-THROUGH TERMINAL BLOCK, PUSH IN, 2.5 MM, 800 V, 24 A, NUMBER OF CONNECTIONS: 4
Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
1521820000 Application
Power Distribution Applications1521820000 Item Features
- Spring connection with PUSH IN technology
- The innovative PUSH IN technology reduces the amount of time you spend on wiring to a minimum
- Direct insertion guarantees high conductor pull-out forces and simple handling for all conductor types
1521820000 Standards
RoHS Compliant|UL File No. E60693|UL 94 V-0 Flammability Rating|UL/cULus File No. E60693|CSA File No. 200039-70089609|ATEX File No. TUEV16ATEX7909U|IECEX File No. IECEXTUR16.0036U|EN 60079-7: Ex eb II C Gb|Ex 2014/34/EU Label: II 2 G D|CE Certified|DNV-GL Approved|EAC Certified|IEC Ex CertifiedSKU #2374930Part Number #1521820000UNSPSC39121410UPC04050118328257
