Part Number # 1550070000
SKU # 2352800
Image Disclaimers Message
1550070000

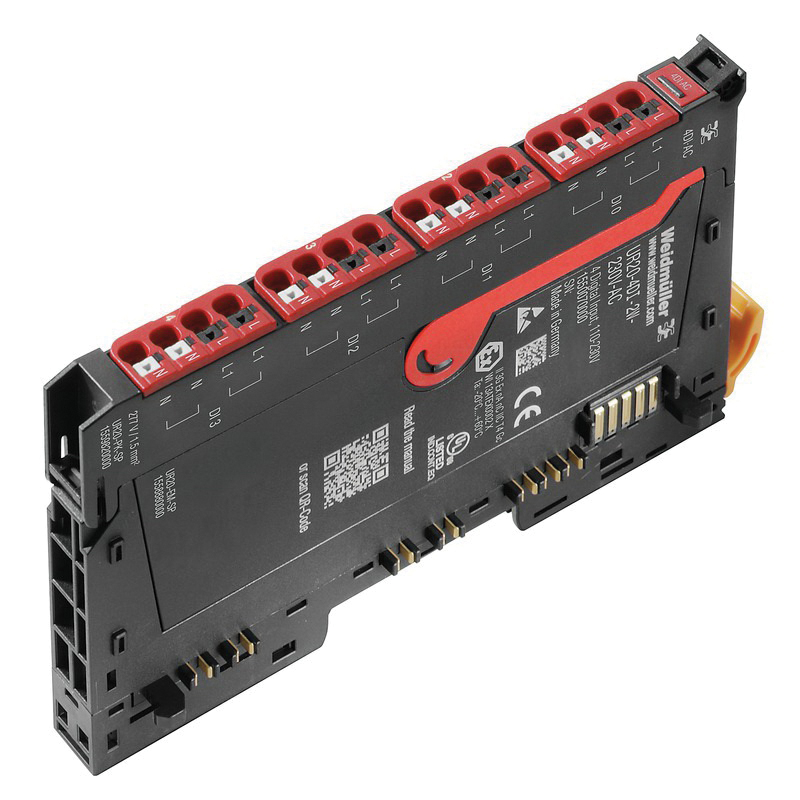

Weidmuller 1550070000 Digital Remote I/O Module, 4 Inputs
Part Number # 1550070000
SKU # 2352800
$81.50 / Each
Weidmuller 1550070000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1550070000 |
| SKU #: | 2352800 |
| Amperage Rating: | 8 mA |
| Dimensions: | 120 mm H x 11.5 mm W x 76 mm D |
| Temperature Rating (Degrees F): | -20 to 60 deg C |
| Terminal Type: | Push-In |
| Type: | Digital |
| Country of origin: | DE |
| Number of inputs: | 4 |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151602 |
| UPC: | 04050118356380 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$81.50 / Each
Quantity:
- Weidmuller Remote I/O Module, Digital, 4 Inputs, 24 VDC, 8 mA, Push-In Terminal, -20 to 60 deg C, 120 mm H x 11.5 mm W x 76 mm D Dimensions
1550070000 Item Features
- The module electronics supply the connected sensors from the input current path
- Input filter can be set channel by channel
- Galvanic isolation by 4 kV
- Positive switching
- 2-wire connection
1550070000 Standards
RoHS Compliant|ATEX Certified|RINA Compliant|UL File No. E141197|cULus Listed for Hazardous Locations|cULusEX Listed|IEC 61131-2|ABS Approved|DNV-GL Approved|UL 94 V-0 Flammability RatingSKU #2352800Part Number #1550070000UNSPSC32151602UPC04050118356380
