Brand: Weidmuller

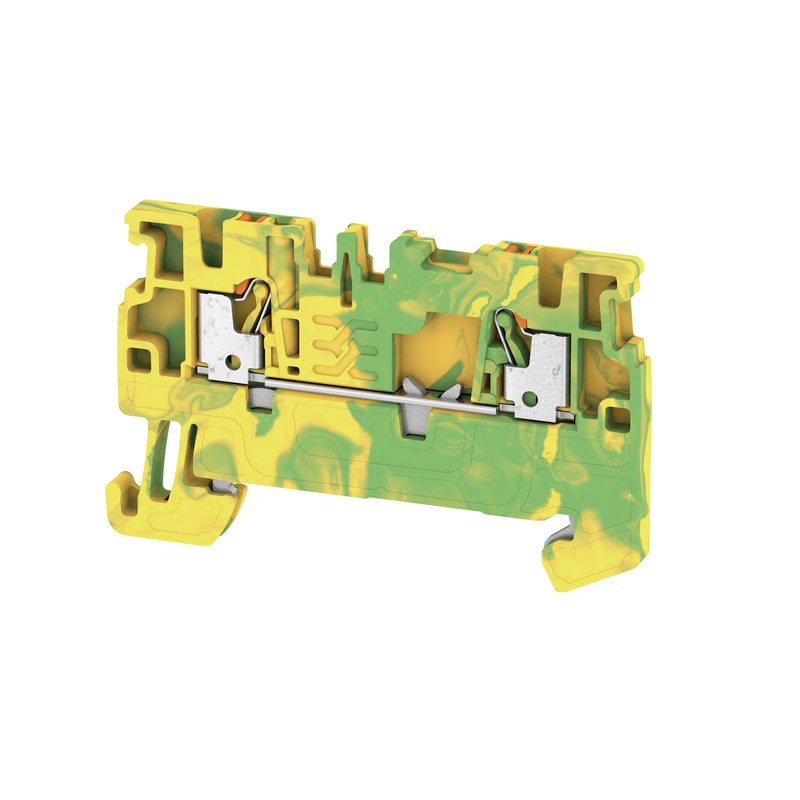

Weidmuller 1552680000 Electrical Terminal
Image Disclaimers Message
Brand: Weidmuller
Weidmuller 1552680000 Electrical Terminal
Brand: Weidmuller
Weidmuller 1552680000 Electrical Terminal
Part #:1552680000
SKU #: 2352670
$142.50/50EA
Key Features
Part #:1552680000
SKU #: 2352670
Brand: Weidmuller
Dimensions: 55 mm H x 3.5 mm W x 33.5 mm D
Series: A Series
Temperature Rating (Degrees F): -60 to 130 deg C
Voltage Rating: 500 V
Wire Size: 1.5 sq-mm
$142.50/50EA
- Spring connection with PUSH IN technology
- The innovative PUSH IN technology reduces the amount of time you spend on wiring to a minimum
- Direct insertion guarantees high conductor pull-out forces and simple handling for all conductor types
Specifications
Brand: Weidmuller
Dimensions: 55 mm H x 3.5 mm W x 33.5 mm D
Series: A Series
Temperature Rating (Degrees F): -60 to 130 deg C
Voltage Rating: 500 V
Wire Size: 1.5 sq-mm
Color: Green/Yellow
Connection type: Push-In
Country of origin: DE
Material: Wemid
Mounting type: Snap-On
Manufacturer Name: Weidmuller
UNSPSC: 39121410
UPC: 04050118359862
Weidmuller 1552680000 Electrical Terminal
Additional Description: WEID-1552680000 A2C 1.5 PE PE TERMINAL, PUSH IN, 1.5 MM, 500 V, NUMBER OF CONNECTIONS: 2, NUMBER OF LEVELS: 1, GREEN/YELLOW, ORANGE
Catalog Description: Terminal block for connecting protective earth conductors to the mounting base (earth). Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
Item FeaturesPower Distribution Applications
Item Features
Item FeaturesRoHS Compliant|UL File No. E60693|UL 94 V-0 Flammability Rating|UL/cULus File No. E60693|CSA File No. 200039-70089609|ATEX File No. TUEV16ATEX7909U|IECEX File No. IECEXTUR16.0036U|EN 60079-7: Ex eb II C Gb|Ex 2014/34/EU Label: II 2 G D|Bureau Veritas Approved|CE Certified|DNV-GL Approved|EAC Certified
