1552820000
Weidmuller 1552820000 Terminal Blocks
Part Number # 1552820000
SKU # 2406186
$90.39 / 100Each
Typical price:$100.40 / Each
Weidmuller 1552820000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1552820000 |
| SKU #: | 2406186 |
| Amperage Rating: | 17.5 A |
| Dimensions: | 55 mm H x 3.5 mm W x 33.5 mm D |
| Series: | A Series |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Type: | Feed-Through |
| Wire Size: | 1.5 sq-mm |
| Connection type: | Push-In |
| Country of origin: | RO |
| Material: | Wemid |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118359732 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$90.39 / 100Each
Typical price:$100.40 / Each
Quantity:

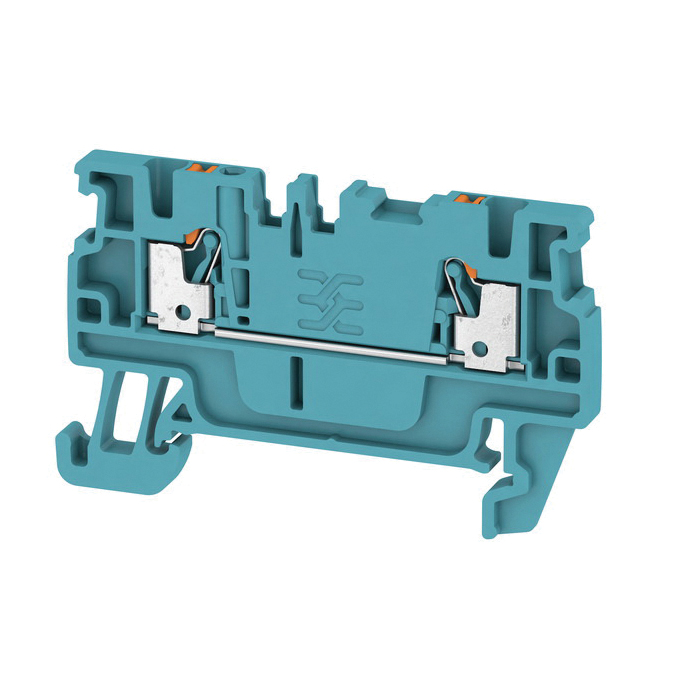

- Klippon Terminal Block, Feed-Through, Series: A Series, 500 V, 17.5 A, 1.5 sq-mm Wire, 8 mm Wire Strip Length, Snap-Fit Mounting, Push-In Connection, -60 to 130 deg C, Wemid, Blue, 55 mm H x 3.5 mm W x 33.5 mm D Dimensions
1552820000 Application
Power Distribution Applications1552820000 Item Features
- Spring connection with PUSH IN technology
- The innovative PUSH IN technology reduces the amount of time you spend on wiring to a minimum
- Direct insertion guarantees high conductor pull-out forces and simple handling for all conductor types
1552820000 Standards
RoHS Compliant|UL File No. E60693|UL 94 V-0 Flammability Rating|UL/cULus File No. E60693|CSA File No. 200039-70089609|ATEX File No. TUEV16ATEX7909U|IECEX File No. IECEXTUR16.0036U|EN 60079-7: Ex eb II C Gb|Ex 2014/34/EU Label: II 2 G D|Bureau Veritas Approved|CE Certified|DNV-GL Approved|EAC CertifiedSKU #2406186Part Number #1552820000UNSPSC39121410UPC04050118359732
Image provided may only be a representation of final product and may include optional equipment
