Brand: Weidmuller

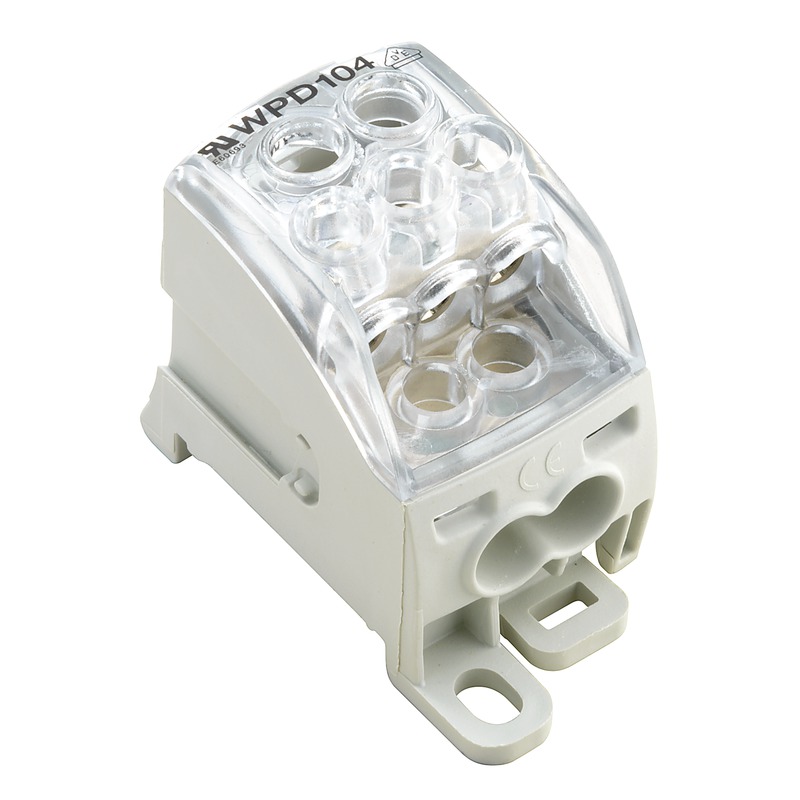

Weidmuller 1562000000 Electrical Terminal
Image Disclaimers Message
Brand: Weidmuller
Weidmuller 1562000000 Electrical Terminal
Brand: Weidmuller
Weidmuller 1562000000 Electrical Terminal
Part #:1562000000
SKU #: 2380219
$22.80/EA
Key Features
Part #:1562000000
SKU #: 2380219
Brand: Weidmuller
Amperage Rating: 101 A
Dimensions: 68 mm H x 31.5 mm W x 49 mm D
Number of Poles: 1
Series: W Series
Temperature Rating (Degrees F): -50 to 130 deg C
$22.80/EA
- Our wide range of W-series terminal blocks with our WPD main line branch terminals, which are optimized to guarantee both convenience and space gains, ensures a secure and convenient connection at the power feed-in
- Power feed-in
Specifications
Brand: Weidmuller
Amperage Rating: 101 A
Dimensions: 68 mm H x 31.5 mm W x 49 mm D
Number of Poles: 1
Series: W Series
Temperature Rating (Degrees F): -50 to 130 deg C
Voltage Rating: 1000 VAC/VDC
Wire Size: 25 sq-mm
Color: Gray
Connection type: Screw
Country of origin: DE
Material: Wemid
Mounting type: Snap-On
Manufacturer Name: Weidmuller
UNSPSC: 39121410
UPC: 04050118367157
Weidmuller 1562000000 Electrical Terminal
Additional Description: WEID-1562000000 WPD 104 1X25+1X16/2X16+3X10 GY POTENTIAL DISTRIBUTOR TERMINAL, SCREW CONNECTION, 1000 V, 164 A, NUMBER OF POLES: 1, MOUNTING PLATE, TS 35, GREY
Catalog Description: Terminal block for potential distribution. With high contact density.
Item FeaturesPower Distribution Applications
Item Features
Item FeaturesRoHS Compliant|UL File No. E60693|REACH SVHC Lead 7439-92-1|UL 94 V-0 Flammability Rating|UL/cULus File No. E60693|cCSAus File No. 70128467|IEC 60947-7-1|UL 1059|EAC Certified|VDE Approved
